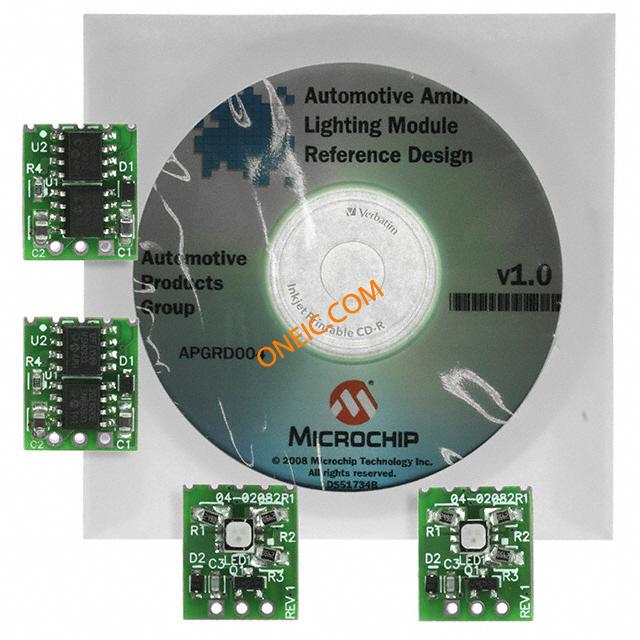

APGRD004

制造商	Microchip Technology Inc.
描述	Automotive Ambient Lighting Module Reference Design Development Boards & Kits - PIC / DSPIC Auto Ambient Lighting Module REF DESIGN MOD AUTO AMBNT LIGHT APGRD004, Development Kit, LED, CD with Software, PC Board PIC12F615, AMBIENT LIGHT MODULE REFERENCEDESIGN,APGRD004 Automotive Ambient Lighting Ref Design
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

对参数有疑问？问 AI 助手

商业参数

产品	Reference Designs	产品类别	Development Boards & Kits - PIC / DSPIC
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423190

电气参数

核心类型	PIC	接口	LIN
供电电压	8 V to 18 V	元件数量	:APGDT001

机械参数

重量

0.05

核心数/总线宽度

8 bit

产品信息

类型	Development Kit	内容	4 Boards, Software
嵌入式	Yes, MCU, 8-Bit	产品特性	:LIN Protocol Module, Intersystem Communication, Main Body Controller
功能	Reference design board for automotive ambient lighting	套件类型	:Test
技术	LED	套件内容	CD with Software, PC Board
主要用途	Lighting, RGB LED Controller	制造商全称	:(Not Available)
卡标准	Development Kit	工具类型/特性	PIC12F615
主要特性	4 Tiny Boards, Each Have: RGB LED, LIN Transceiver, Voltage Regulator, MCU	使用的IC/零件	MCP2021, PIC12F615
芯片组制造商	:Microchip	次要特性	LIN Commands are Interpreted to Control 16,383 Colors and 1,023 Dimming Levels
应用细节	:Serial Analyzer	支持MCU系列	:MCP2021, PIC12Fxx
