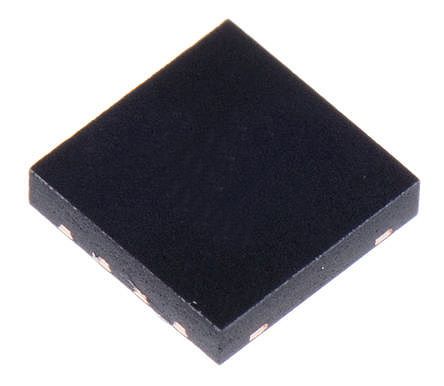

点击放大查看
MCP2021-330E/MD
| 制造商 | Microchip Technology Inc. |
| 描述 | LIN Transceiver 1TX 1RX 20KBd 8-Pin DFN EP IC LIN TXRX ON-BOARD VREG 8DFN LIN Transceivers LIN ver 21 Trnsceivr w/ on-brd 33V Vreg Microchip 20kBd LIN 收发器, 支持SAE J2602标准, 睡眠断电, 8针 DFN封装 |
| 分类 |
商业参数
| 产品 | LIN Transceivers | 产品类别 | LIN Transceivers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 91 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 工作模式 | 睡眠 | 数据速率（最大） | 20 KBd |
| 输出电流 | 25 uA | 供电电流 | 1 mA |
| 供电电压 | 6 V | 供电类型 | Single |
| I/O低电平电压 | 0.2 V | 元件数量 | 1 |
| 接收器迟滞 | 175mV | 最大额定电流 | 1 mA |
| 最小输入电压 | 0.8 V | ||
机械参数
| 宽度 | 4mm | 高度 | 0.95mm |
| 长度 | 4mm | 包装方式 | Tube |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 8 | 封装形式 | 8DFN EP |
| 包装数量 | DFN | 尺寸/外形 | 4 x 4 x 0.95mm |
| 供应商器件封装 | 8-DFN (4x4) | ||
产品信息
| 类型 | LIN Transceiver | 双工模式 | Half |
| 功能 | Y | 协议 | LIN 1.3|LIN 2.0|LIN 2.1|SAE J2602 |
| 制造商全称 | Microchip Technology | 兼容性 | SAE J2602 |
| 发射器数量 | 1 | 驱动器/接收器数量 | 1/1 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
