点击放大查看

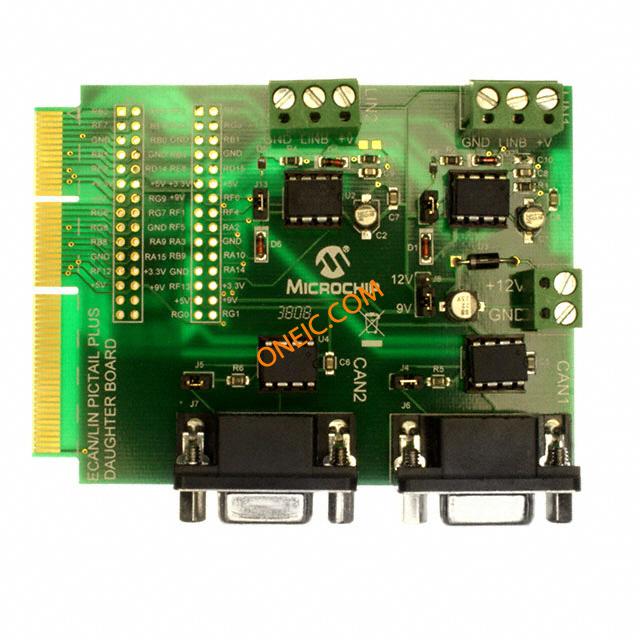

AC164130
| 制造商 | Microchip Technology Inc. |
| 描述 | ECAN/LIN PIC Tail Plus Daughter Board Networking Development Tools ECAN/LIN PICtail Plus Daughter Board ECAN/LIN PICtail Plus DaughterB BOARD DAUGHT PICTL PLUS ECAN/LIN BOARD,AC164130 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 1 |
| 产品类别 | Networking Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | RoHS-conform |
电气参数
| 接口 | CAN, LIN | 供电电压 | 3.3 V |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 功能 | Daughter Board |
| 匹配码 | ECAN/LIN PICTAIL PLUS | 主要用途 | Interface, CAN, ECAN LIN |
| 开发套件 | EVALBOARD | 标准交期 | 6 weeks |
| 工具类型/特性 | dsPIC33F, PIC24H | 主要特性 | 2 CAN and 2 LIN Transceivers, 4 Socketed IC's |
| 使用的IC/零件 | MCP2021, MCP2551 | 次要特性 | Requires Explorer 16 Board |
环境参数
| 机械寿命 | Obsolete | ||
