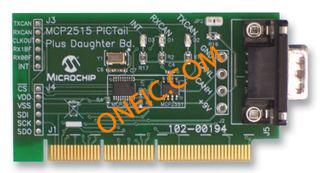

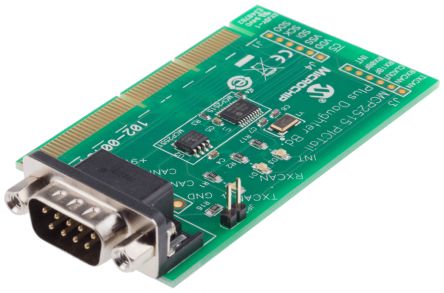

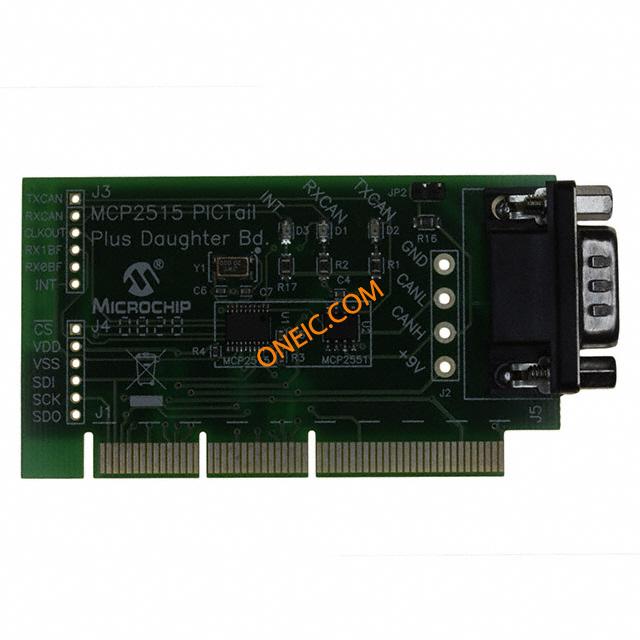

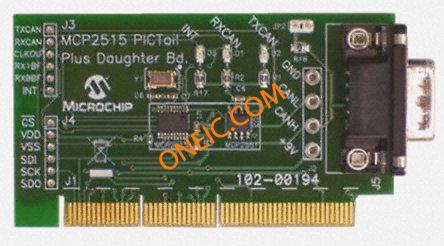

MCP2515DM-PTPLS
| 制造商 | Microchip Technology Inc. |
| 描述 | Pictail Plus Daughter Board Daughter Cards & OEM Boards MCP2515 PICTail Plus Daughtr Brd MCP2515 PICTail Plus Daughter Board BOARD DAUGHTER PICTAIL MCP2515 MCP2515DM-PTPLS, Module, CAN, CD with Documentation MCP2515, CAN CNTLR, DAUGHTER BOARD EV.BOARD,MCP2515DM-PTPLS Microchip PICtail Plus CAN 总线接口 子板 |
| 分类 |
商业参数
| 最小起订量 | 4 | 产品 | Daughter Boards |
| 单位包装 | 1 | 其他名称 | MCP2515DMPTPLS |
| 产品类别 | Daughter Cards & OEM Boards | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | CAN, Serial |
| 元件数量 | :MCP2515, MCP2551 | ||
机械参数
| 重量 | 0.25 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :Stand-alone Controller and Transceiver, PICtail Plus Connector, DB9 Connector |
| 功能 | PICtail Plus Daughter Board | 套件类型 | :Interface |
| 技术 | CAN | 套件内容 | CD with Documentation |
| 主要用途 | Interface, CAN Controller | 卡标准 | Module |
| 工具类型/特性 | MCP2515, MCP2551 | 主要特性 | CAN Controller and CAN Transceiver in a PICtail Plus Daughter Board |
| 使用的IC/零件 | MCP2515, MCP2551 | 芯片组制造商 | :Microchip |
| 应用细节 | :CAN | 支持MCU系列 | :PICmicro |
| 适用产品/相关产品 | DM240001 | ||
