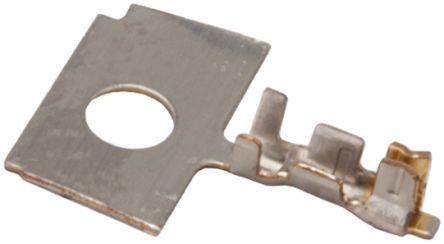

点击放大查看

DF13-3032SCFA

制造商	Hirose Electric Co., Ltd.
描述	ヘッダ & ワイヤハウジング SOCKET CONTACT/REEL AWG30-32 CONN SOCKET 30-32AWG CRIMP GOLD Crimp Contact gold plated 30-32 AWG way Headers & Wire Housings SOCKET CONTACT/REEL AWG30-32 DF13-3032SCFA Hirose DF13 系列母压接接线端子, 压接, 镀金触点
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	H12151CT	标准包装数量	10,000
工厂包装数量	10000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

接触电阻

30mΩ

机械参数

包装方式	Tape & Reel (TR)	导线线规	30-32 AWG
端接方式	Crimp	插针或插孔	Socket
连接器类型	母座	接触镀层	Gold
触头材料	Phosphor Copper	端接排数	压接
端接样式	Crimp	第一触头极性	Socket (Female)
接触件端接	Crimp	线规或范围 - AWG	30AWG

产品信息

连接器性别	Female	系列	DF13
产品子类型	Contacts	适用产品/相关产品	DF13 Series Miniature Crimping Connector

环境参数

工作温度

+85°C

文档与媒体

PDF 文档

e53600014.pdf
