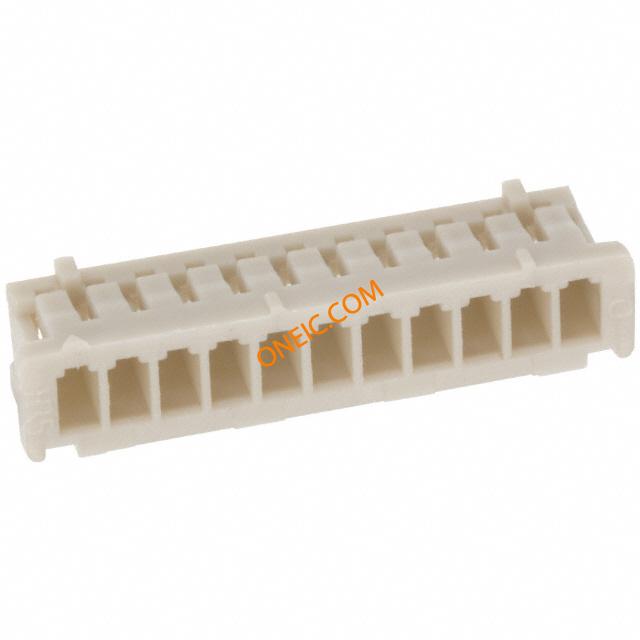

DF13-11S-1.25C

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings 1.25MM CRIMP SOCKET 11 POSITION CONN SOCKET HOUSING 11POS 1.25MM Conn Housing PL 11 POS 1.25mm Crimp ST Cable Mount Bag
分类	电容器铝电解电容器低阻抗铝电解电容器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

额定电压	150 VAC	最大额定电流	1 A
最小供电电压	150VAC	连接器类型 - 电压输入	Crimp

机械参数

颜色	Beige	深度	4 mm
间距	0.049" (1.25mm)	高度	3.2 mm
包装方式	Bulk	导线线规	26-30 AWG
触点形式	Female Socket	触头类型	Female Socket
外壳颜色	Beige	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	安装样式	Free Hanging
排数	1	壳体材料	Polyamide
总长度	15.4 mm	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	11
接触件端接	Crimp	位数	11

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	PL	系列	DF13
已删除	Compliant	产品子类型	Receptacles / Sockets - Housings
输出配置	Free Hanging (In-Line)

环境参数

工作温度

-35C to 85C

文档与媒体

PDF 文档

e53600014.pdf
