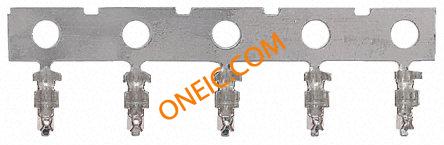

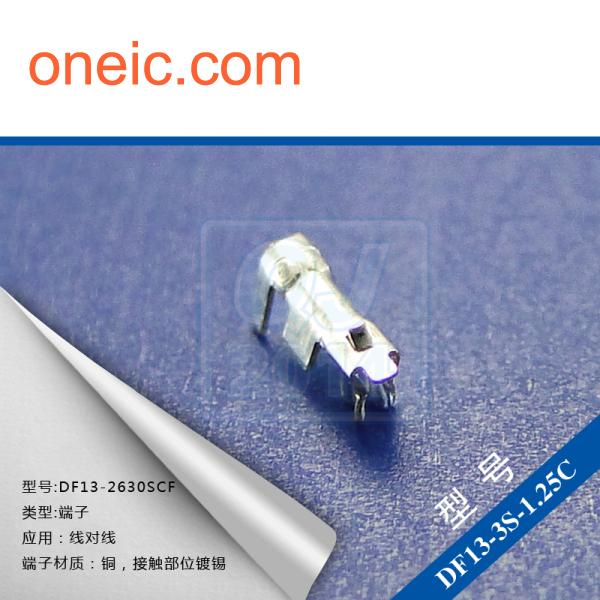

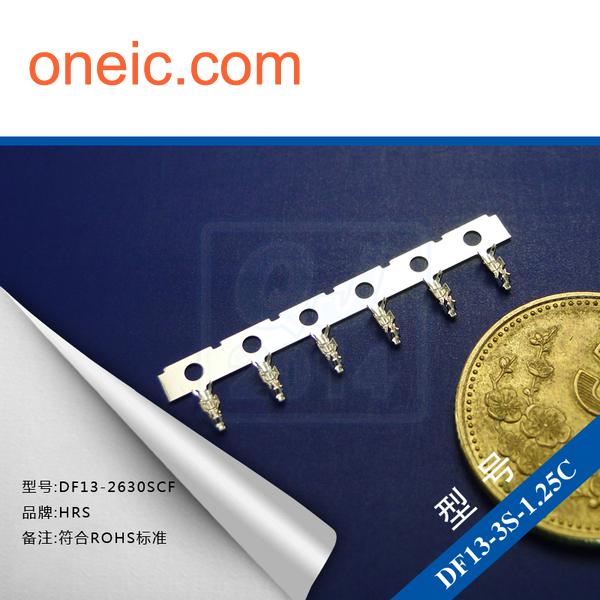

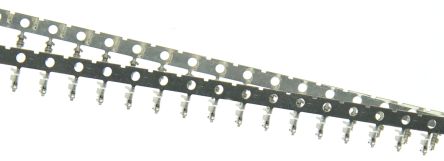

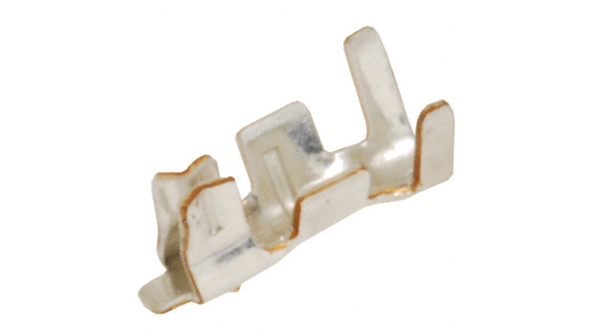

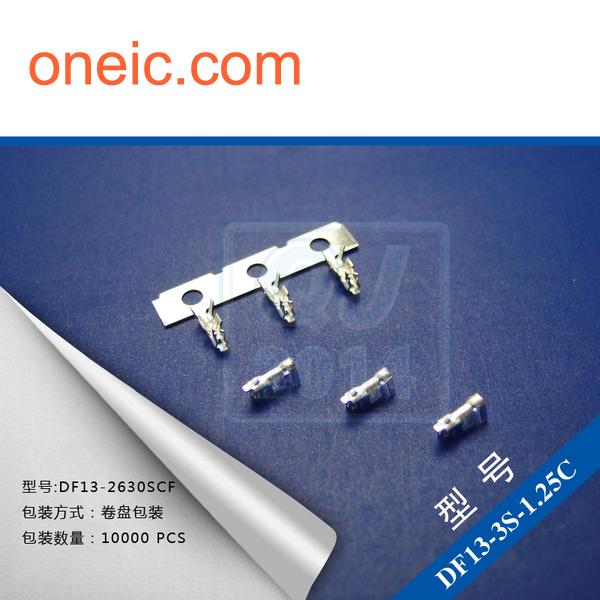

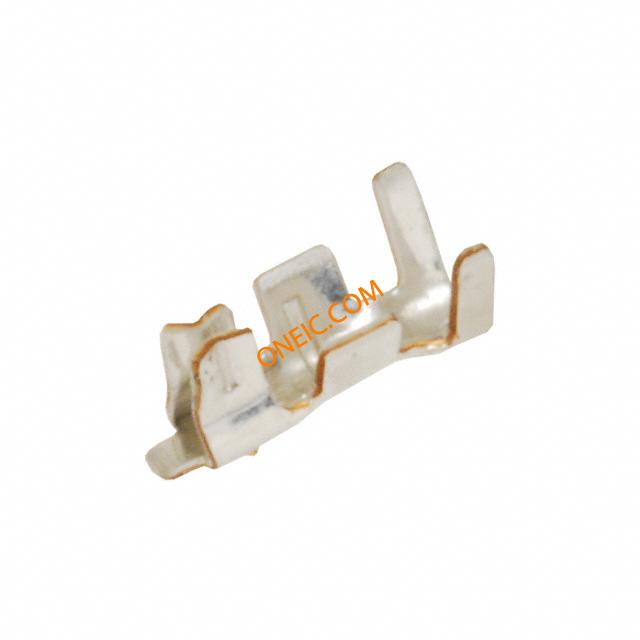

DF13-2630SCF

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings FEMALE CONTACT TIN 26-30AWG REEL CONN CONTACT 26-30AWG CRIMP TIN Crimp contact,PCB-Board-Wire,tin plated DF13-2630SCF Contact; female; 26÷30AWG; DF13; crimped, on cable Crimp socket Female 32...26 AWG, DF13-2630SCF, Hirose Hirose DF13 系列母压接接线端子, 压接, 镀锡触点
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	10,000
工厂包装数量	10000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	150 V	接触电阻	30mΩ
最大额定电流	1 A

机械参数

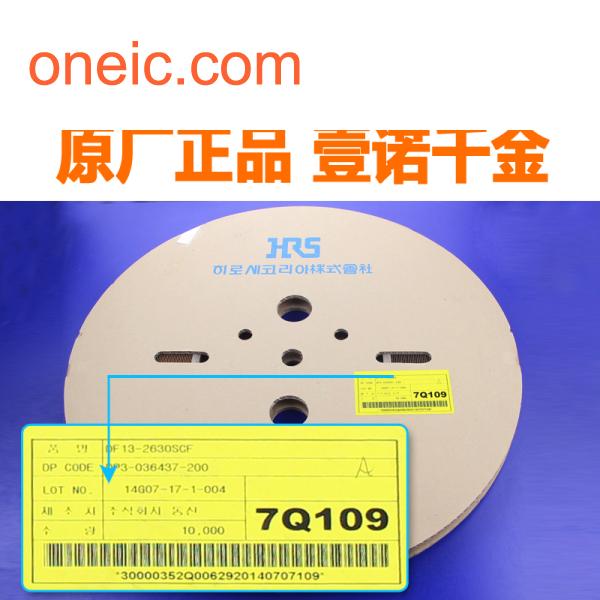

重量	0.04 g	包装方式	Tape & Reel (TR)
导线线规	26-30 AWG	端接方式	Crimp
重量（g）	5.3	安装类型	crimped, on cable
插针或插孔	Socket	电缆直径	0.65
连接器类型	female	接触镀层	Tin
触头材料	Phosphor Copper	包装数量	200
端接排数	压接	连接器 - 电缆	contact
端接样式	Crimp	线规 - 端部	32
第一触头极性	Socket (Female)	接触件端接	Crimp
第一连接器极性	Female	线规或范围 - AWG	32...26 AWG
外管直径（最大）	1

产品信息

SPG	200	名称	端子
单位	PCS	连接器性别	Female
系列	DF13	数量	50000.0
产品子类型	Contacts	适配器系列	DF13
单元数量	100	制造国家	日本
最小起订量	1	适用产品/相关产品	DF13 系列

环境参数

工作温度

+85°C

文档与媒体

PDF 文档

e53600014.pdf
