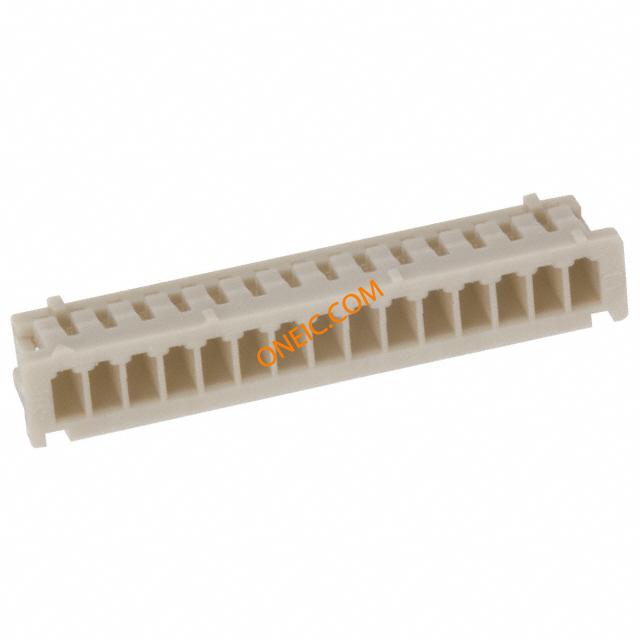

DF13-15S-1.25C

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings 1.25MM CRIMP SOCKET 15 POSITION CONN SOCKET HOUSING 15POS 1.25MM DF13 socket housing, 1 row 15-way Conn Housing PL 15 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing PL 15 POS 1.25mm ST Bag Crimp housing Pitch1.25 mm Poles 15 DF13, DF13-15S-1.25C, Hirose Hirose DF13 系列 1.25mm 节距 15 路直母电缆安装 PCB 壳体
分类	电容器铝电解电容器低阻抗铝电解电容器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	150 V	极数	15
最大额定电流	1 A	最小供电电压	150VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Beige	深度	4mm
间距	0.049" (1.25mm)	宽度	3.2mm
高度	3.2 mm	长度	20.4mm
包装方式	Bulk	壳体颜色	20.4
导线线规	26-30 AWG	方向	直
触点形式	Female Socket	触头类型	Female Socket
外壳颜色	Beige	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Tin
安装样式	Wire	排数	1
触头材料	Phosphor Copper	壳体材料	PA
总长度	20.4 mm	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	15
接触件端接	Crimp	位数	15

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Male	系列	DF13
已删除	Compliant	产品子类型	Receptacles / Sockets - Housings
放大器类型	17.5	连接方式	Wire-Board
输出配置	Free Hanging (In-Line)	适用产品/相关产品	Miniature Crimping Connector

环境参数

工作温度

-35C to 85C

文档与媒体

PDF 文档

e53600014.pdf

相关型号

DF13C-15P-1.25V(20)

Hirose Connector

Headers & Wire Housings 1.25MM V PIN HEADER 15P SMT TIN CONN HEADER 15POS 1.25MM SMD TIN

¥7.4800

详情

DF13A-15P-1.25H(50)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM RA PIN HEADER 15P SMT GOLD CONN HEADER 15POS 1.25MM R/A SMD Headers & Wire Housings 1.25MM RA PIN HEADER 15P SMT GOLD

¥5.8344

详情

DF13-15P-1.25V(50)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM V PIN HEADER 15P SMT GOLD CONN HEADER 15POS 1.25MM SMD AU Headers & Wire Housings 1.25MM V PIN HEADER 15P SMT GOLD

¥4.4975

详情

DF13-15P-1.25H(20)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM RA PIN HEADER 15P SMT TIN CONN HEADER 15POS 1.25MM R/A TIN Hirose DF13 Series 1.25mm Pitch 15 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.25MM RA PIN HEADER 15P SMT TIN 15WR/APINHDRSMT Pin header, angled, SMD Pitch1.25 mm Poles 15 DF13, DF13-15P-1.25H(20), Hirose Hirose DF13 系列 1.25mm节距 15路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

¥3.1824

详情

DF13B-15P-1.25V(20)

Hirose Connector

ヘッダ & ワイヤハウジング HDR 15POS 1.25MM SMT TIN CONN HEADER 15POS 1.25MM SMD TIN

¥7.1128

详情

DF13-15P-1.25H(50)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM RA PIN HEADER 15P SMT GOLD CONN HEADER 15POS 1.25MM R/A SMD

¥5.8344

详情

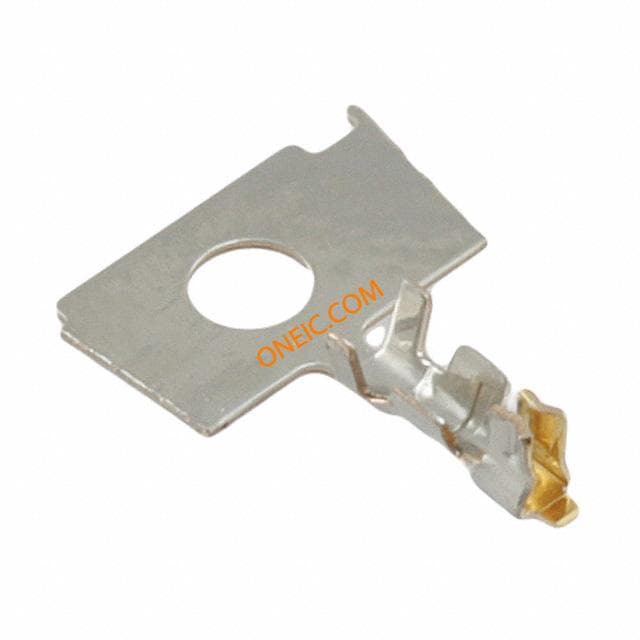

DF13-3032SCFA
