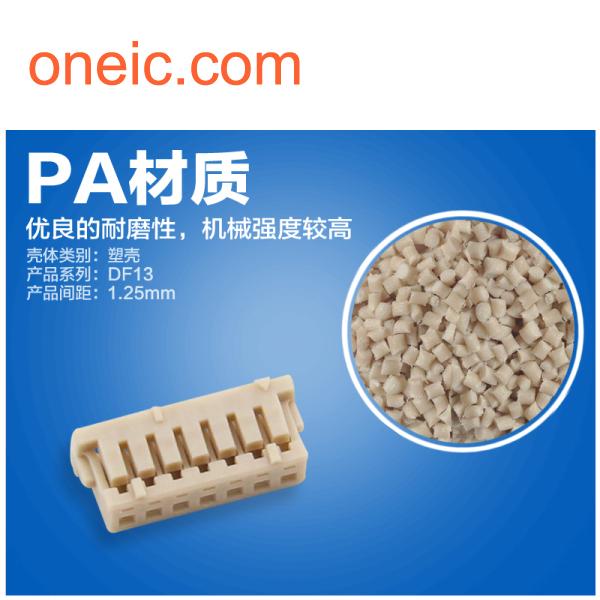

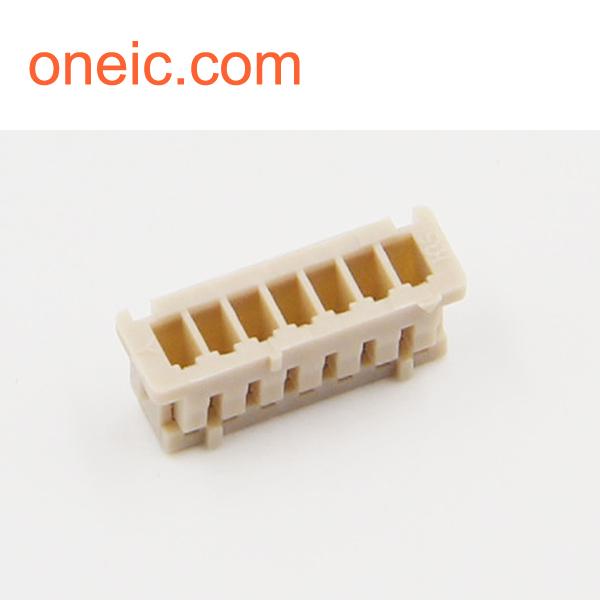

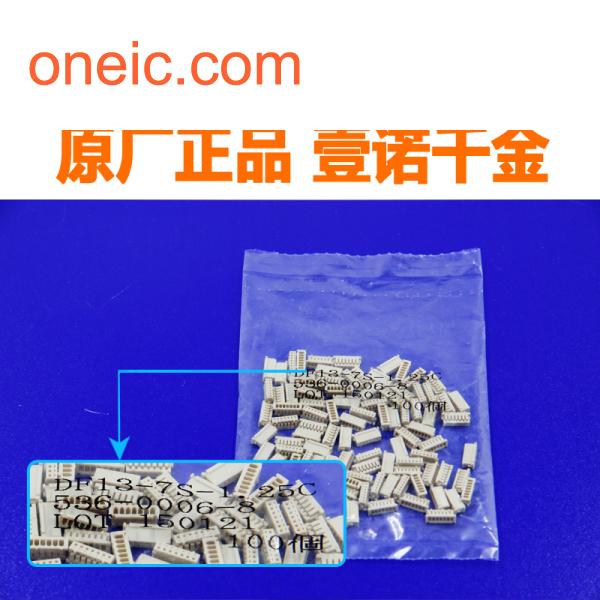

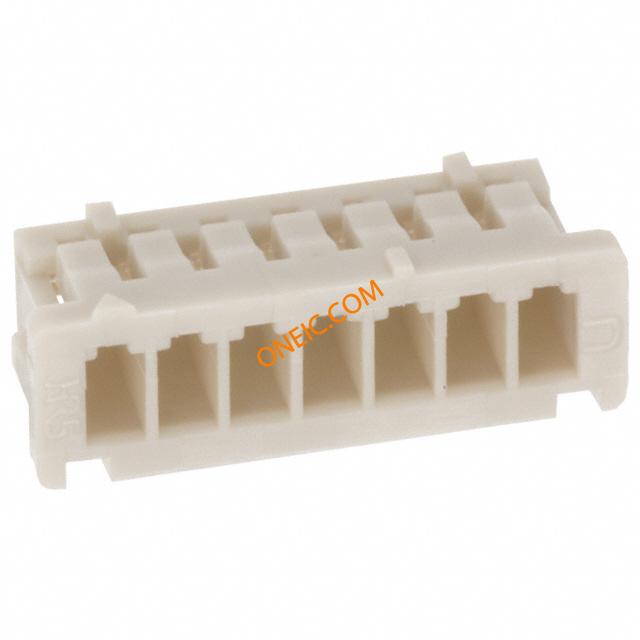

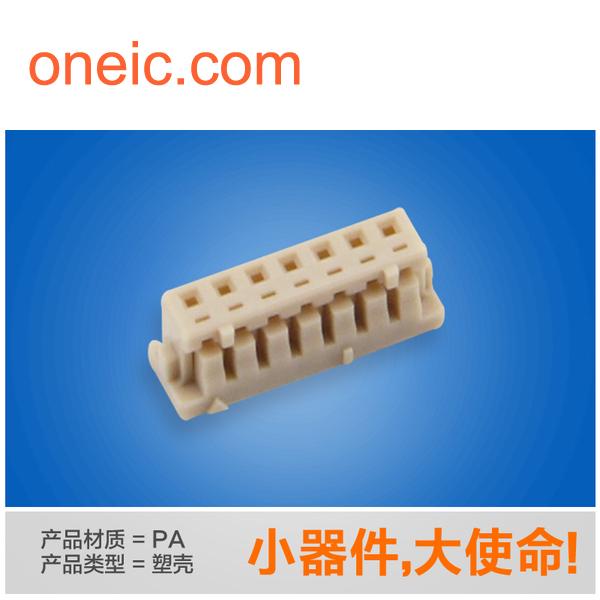

DF13-7S-1.25C

制造商	Hirose Electric Co., Ltd.
描述	Headers & Wire Housings 1.25MM RECEPT HSNG 7P SINGLE ROW CRIMP CONN SOCKET HOUSING 7POS 1.25MM DF13 socket housing, 1 row 7-way Conn Housing PL 7 POS 1.25mm Crimp ST Cable Mount Bag Crimp housing Pitch1.25 mm Poles 7 DF13, DF13-7S-1.25C, Hirose Hirose DF13 系列 1.25mm 节距 7 路直母电缆安装 PCB 壳体
分类	电容器铝电解电容器低阻抗铝电解电容器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	150 V	极数	7
最大额定电流	1 A	最小供电电压	150VAC

机械参数

颜色	Beige	深度	4mm
间距	0.049" (1.25mm)	宽度	3.2mm
高度	3.2 mm	长度	10.4mm
包装方式	Bulk	壳体颜色	10.4
导线线规	26-30 AWG	方向	直
重量（g）	0.35	触头类型	Female Socket
外壳颜色	Beige	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	安装样式	Wire
排数	1	壳体材料	PA
总长度	10.4 mm	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	7
接触件端接	Crimp	位数	7

产品信息

名称	塑壳	备注	Contacts Not Provided
类型	Housing	单位	PCS
连接器性别	Male	系列	DF13
已删除	Compliant	数量	1600.0
放大器类型	7.5	连接方式	Wire-Board
制造国家	日本	最小起订量	1
适用产品/相关产品	Miniature Crimping Connector

环境参数

工作温度

-35C to 85C

文档与媒体

PDF 文档

e53600014.pdf
