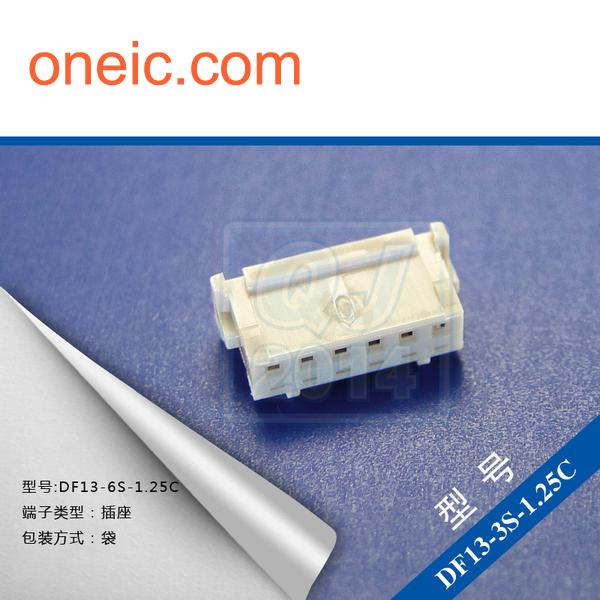

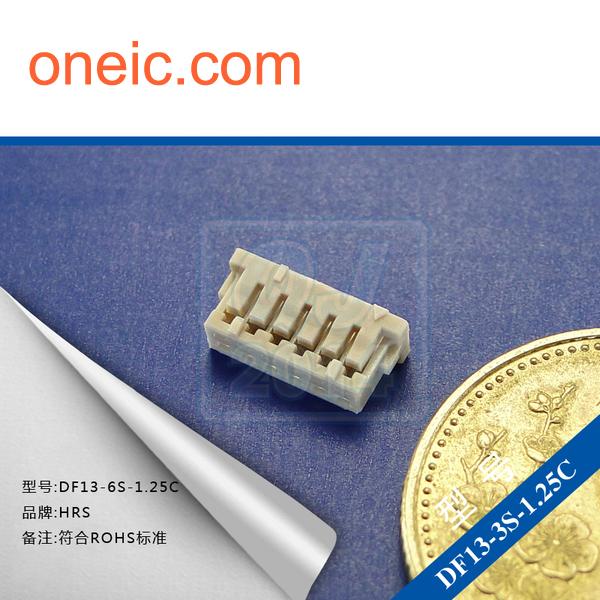

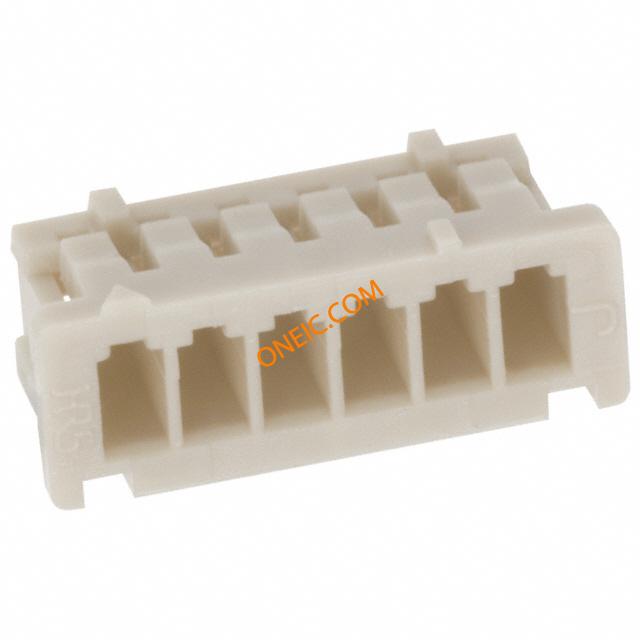

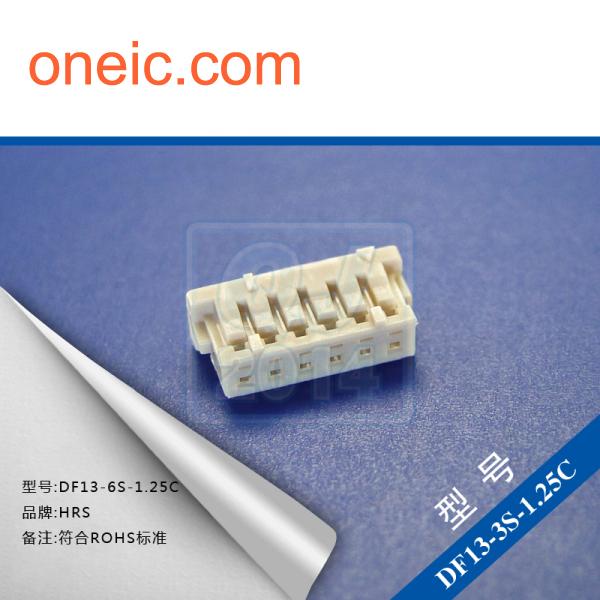

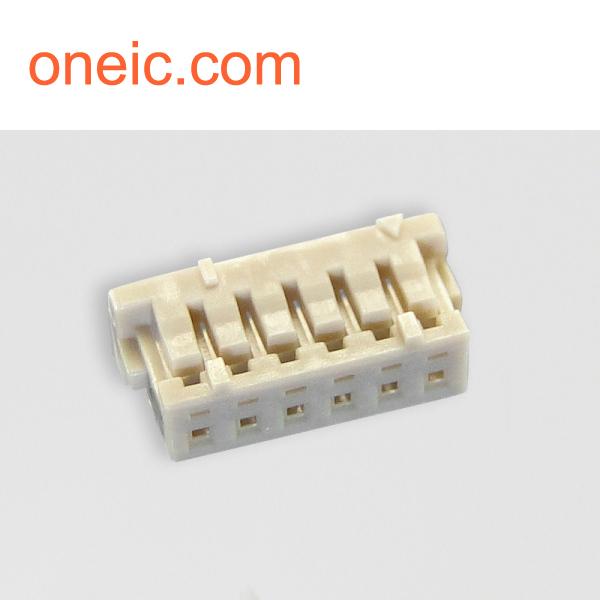

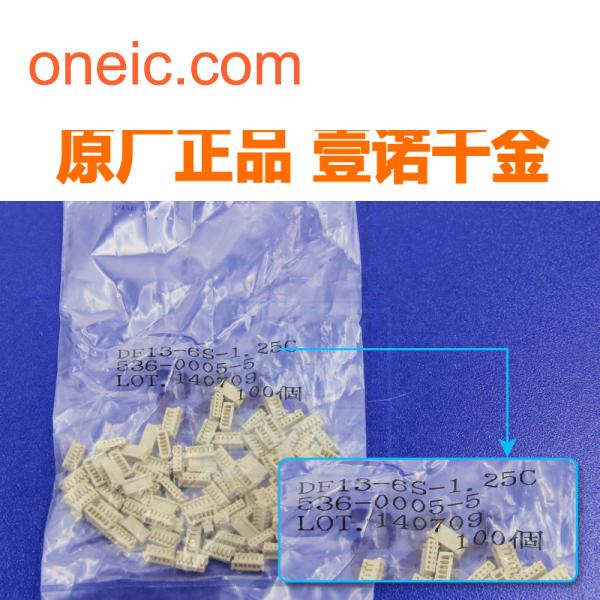

DF13-6S-1.25C
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング 1.25MM RECEPT HSNG 6P SINGLE ROW CRIMP CONN SOCKET HOUSING 6POS 1.25MM DF13 socket housing, 1 row 6-way Conn Housing PL 6 POS 1.25mm Crimp ST Cable Mount Bag Crimp housing Pitch1.25 mm Poles 6 DF13, DF13-6S-1.25C, Hirose Hirose DF13 系列 1.25mm 节距 6 路 直 母 电缆安装 PCB 壳体 |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 极数 | 6 | 最大额定电流 | 1 A |
| 最小供电电压 | 150VAC | ||
机械参数
| 颜色 | Beige | 深度 | 4mm |
| 间距 | 0.049" (1.25mm) | 宽度 | 2.3mm |
| 高度 | 2.3 mm | 长度 | 9.15mm |
| 包装方式 | Bulk | 壳体颜色 | 9.15 |
| 导线线规 | 26-30 AWG | 方向 | 直 |
| 重量（g） | 1.6 | 触头类型 | Female Socket |
| 外壳颜色 | Beige | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 排数 | 1 |
| 壳体材料 | PA | 总长度 | 9.15 mm |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 名称 | 塑壳 | 备注 | Contacts Not Provided |
| 类型 | Housing | 单位 | PCS |
| 连接器性别 | Male | 系列 | DF13 |
| 已删除 | Compliant | 数量 | 20000.0 |
| 放大器类型 | 6.25 | 连接方式 | Wire-Board |
| 制造国家 | 日本 | 最小起订量 | 1 |
| 适用产品/相关产品 | Miniature Crimping Connector | ||
环境参数
| 工作温度 | -35C to 85C | ||
