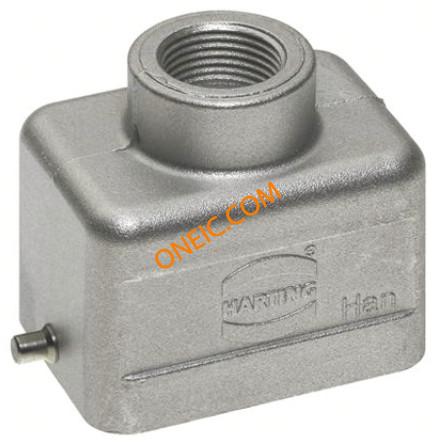

点击放大查看
19628061440
| 制造商 | |
| 描述 | Heavy Duty Power Connectors METAL HOOD HAN 6B 1 LVR LCKING HAN EMC/B 6 HOOD TOP ENTRY M20 Hood top entry Han 6B EMC 1 x 20mm CONN HOOD TOP ENTRY SZ6B M20 Harting Han EMC 系列 顶入 电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 019 019-62-806-1440 1440 62 806 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
机械参数
| 尺寸 | 6B | 包装方式 | Bulk |
| 方向 | 顶入 | 螺纹尺寸 | M20 x 1.5 |
| 重量（g） | 106.00000 | 连接器类型 | Hood |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 2.362" L x 1.693" W x 1.575" H (60.00mm x 43.00mm x 40.00mm) |
产品信息
| 类型 | 连接器护罩 | 样式 | Top Entry |
| 系列 | * | 产品子类型 | Inlets |
| 锁定位置 | Side Clip on Base Bottom | 附件类型 | Top Entry Hood |
| 加载位置数 | 1 | 适用产品/相关产品 | Heavy Duty Power Connector |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
