点击放大查看

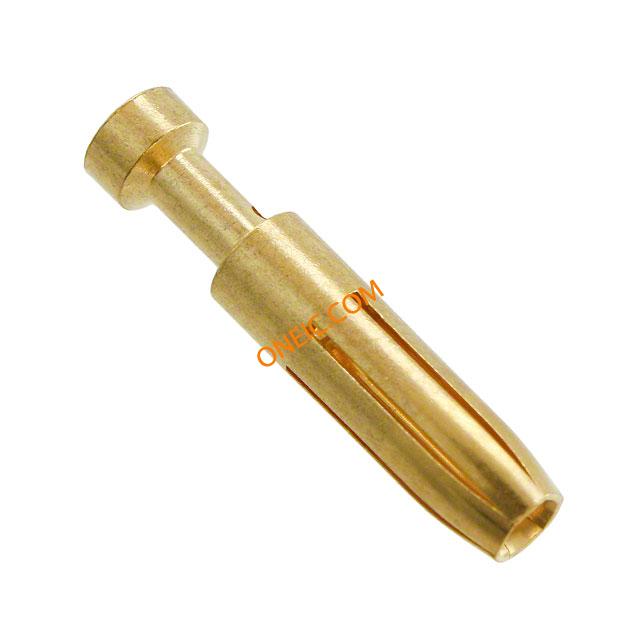

09330006222

制造商	HARTING Technology Group
描述	Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE CONTACT STD GOLD PLATED HAN E F CRIMP CONTACT AU 20AWG Han E F Crimp Contact Au 0.5mm 20AWG CrimpPowerContact,GoldPlated,20AWG,Female Contact; female; 0.5mm2; Han E; gold plated; crimped; 16A; 1mΩ sale Han E Contacts Female: Han E F Crimp Contact Au 0.5 mm/20AWG Harting Han Contacts 系列母座压接触点 , 额定电流 16A/ 830 V, 适用于大负荷电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	000 09 09-33-000-6222 33 6222	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

电压	830V	额定电压	830 V
接触电阻	1	最大额定电流	16A
反向漏电流 @ Vr	16A

机械参数

深度	4.5	高度	4.5
重量	1.7 g	包装方式	Bulk
导线线规	20 AWG	屏蔽类型	No
端接方式	Crimp	重量（g）	1.48000
触头类型	Signal	安装类型	Cable Mount
插针或插孔	Socket	连接器类型	Connector Rectangular
接触镀层	Gold	插入力	Female
材料表面处理	Gold	触头材料	Copper Alloy
总长度	22.2	包装数量	100
连接器 - 电缆	contact	端接样式	Crimp
接触件端接	Crimp	接触镀层厚度	78.7µin (2.00µm)
线规或范围 - AWG	20	线规或范围 - mm²	0.5mm2
触点材料 - 镀层	gold plated

产品信息

SPG	100	类型	20AWG
连接器性别	SKT	系列	Han-EEE
产品子类型	Contacts	附件类型	Crimp Contact
适配器系列	Han E	测量范围	Han Coax、Han Com、Han E、Han EE、Han EEE、Han Modular 70A 混合
单元数量	1	适用产品/相关产品	Heavy Duty Power Connector

环境参数

机械寿命

500cycles

工作温度

125
