芯天下

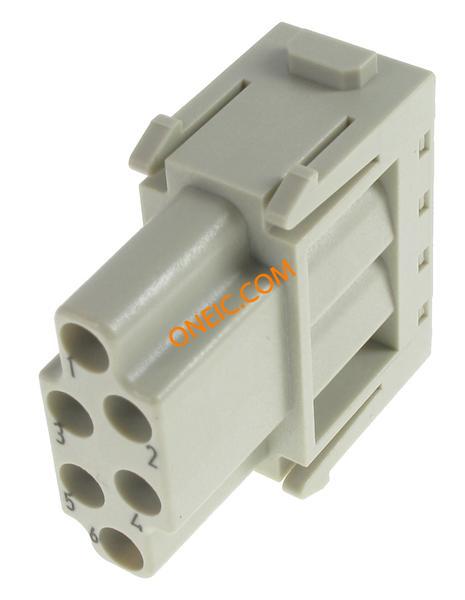

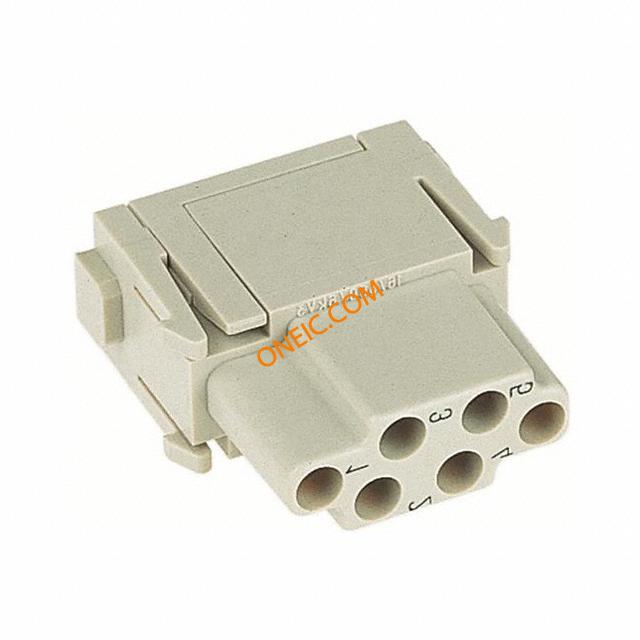

09140063101

点击放大查看

09140063101

制造商
HARTING Technology Group
描述
Conn Housing F 6 POS Crimp ST Panel Mount Heavy Duty Power Connectors 6P FEMALE MODULE HAN MODULAR E HAN E MODULE, CRIMP FEMALE Han(R) E female contact module HanEModule,FemaleInsert,6contacts,500volts,16Amps Connector: HAN; module; female; Han Modular E; PIN:6; 16A; 500V Han-Modular Modules: Han Modular 6 E Module female Harting HAN Modular 系列 6 路 母座 RJ45-Rangierfeld
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名006 09 09-14-006-3101 14 3101产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量2

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

电压500V插入损耗Female
测试电压8kV额定电压600V
工作电压500V最大额定电流16A
连接器类型 - 电压输入w/o terminals反向漏电流 @ Vr16A

机械参数

颜色Gray深度35.8
高度34.2重量0.01 kg
包装方式Bulk重量（g）10.67000
触头类型Han®安装类型Straight
连接器类型Module without Contacts插入力Female
总宽度1壳体材料Polycarbonate (PC)
总长度14.6包装数量2
连接器 - 电缆module端接样式Crimp
触点数6位数6
绝缘材料 - 材质polycarbonate线规或范围 - AWG20-12

产品信息

SPG2类型Housing
连接器性别F系列Han Modular
CAD图纸3D CAD Model制造商全称Han
产品子类型Inserts附件类型模块
适配器系列Han Modular E测量范围Han E
单元数量1

环境参数

机械寿命500cycles工作温度-40°C ~ 125°C
