点击放大查看

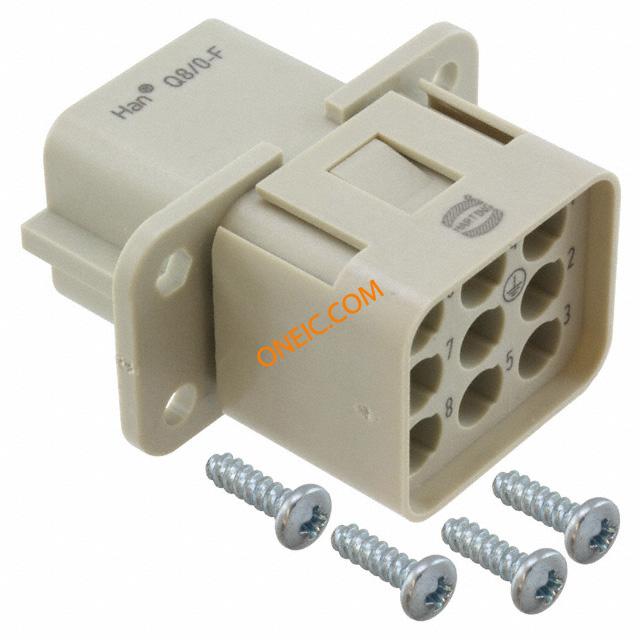

09120083101

制造商	HARTING Technology Group
描述	Conn Housing F 8Power/1Ground POS Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE INSERT 8 POLE CRIMP TERM HAN Q 8/0 FEMALE CRIMP TERM FEMALEINSERTHANQ8/0 Han Q Female Insert: Han Q 8/0 Female Insert Crimp Term Harting Han Q 系列 3行 9针插座电源连接器 , 电缆安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	008 09 09-12-008-3101 12 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	500V	最大额定电流	16A
最小输入电压	500V

机械参数

颜色	Gray	深度	38.5
高度	22.4	包装方式	Bulk
方向	直	重量（g）	16.00000
触头类型	Han®	安装类型	Straight
连接器类型	Insert without Contacts	排数	3
壳体材料	Polycarbonate (PC)	总长度	41.6
端接样式	Crimp	触点数	8Power/1Ground
位数	8+Ground

产品信息

类型	Housing	连接器性别	F
系列	Han Q	产品子类型	Inserts

环境参数

工作温度

-40°C ~ 125°C
