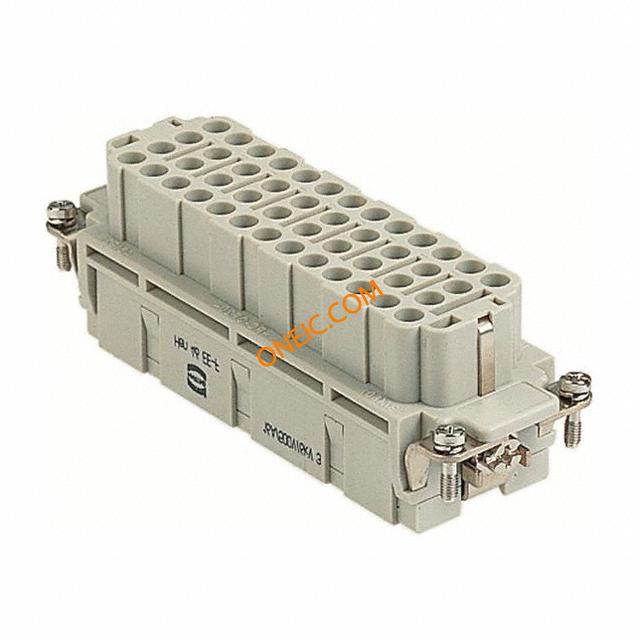

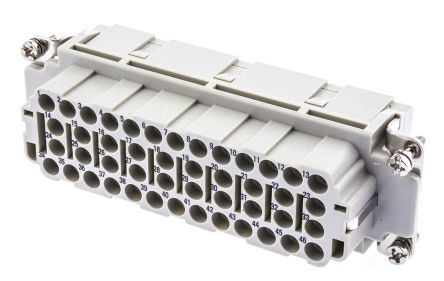

09320463101

制造商	HARTING Technology Group
描述	Conn Housing F 46Power/1Ground POS Crimp ST Cable Mount Heavy Duty Power Connectors HAN EE 46P F CRIMP ORDER CONTACTS SEP HAN EE 46POS FEMALE CRIMP INSERT HanEE46Pos.FemaleCrimpInsert Connector: rectangular; female; Han EE; PIN:46; size 24B; 16A; 500V Han EE Female insert Crimp: Han EE 46 Position Female Crimp Insert Harting Han EE 系列 4行 46针 46P+E极插座电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	046 09 09-32-046-3101 3101 32	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	600V	最大额定电流	16A
最小输入电压	500V	连接器类型 - 电压输入	w/o terminals

机械参数

尺寸	24B	颜色	Gray
深度	36.2	高度	34
重量	0.09 kg	包装方式	Bulk
螺纹尺寸	M3 x 10	触头类型	Han®
安装类型	Straight	连接器类型	Insert without Contacts
排数	4	封装形式	size 24B
插入力	Female	壳体材料	Polycarbonate (PC)
总长度	111	尺寸/外形	24B
端接样式	Crimp	触点数	46Power/1Ground
位数	46+Ground	线规或范围 - AWG	20-12

产品信息

类型	Housing	连接器性别	F
系列	Han-EE	极性	46P+E
产品子类型	Housings	适配器系列	Han EE
单元数量	1

环境参数

工作温度

-40°C ~ 125°C
