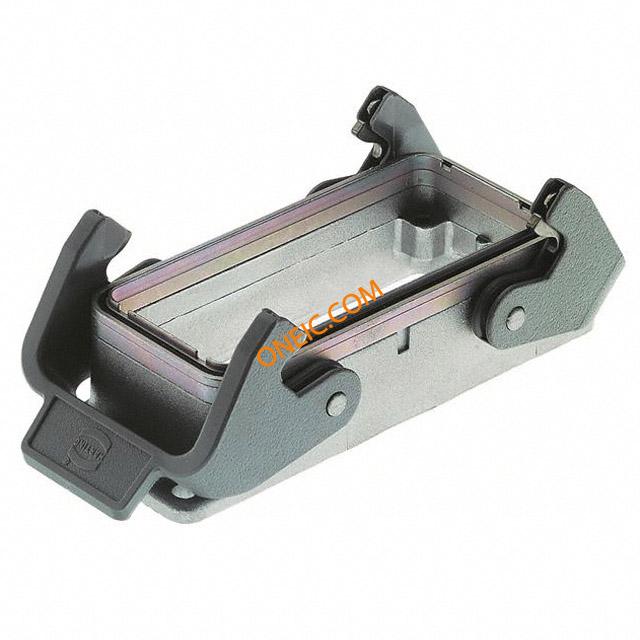

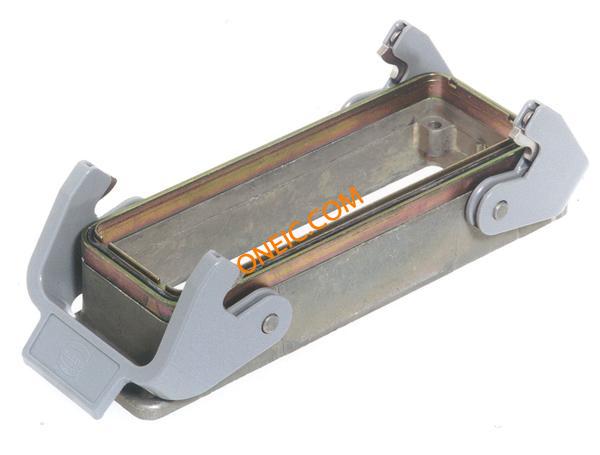

09628240301

制造商	HARTING Technology Group
描述	Connector Accessories Bulkhead Housing Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B 2 LVR LCKING HAN EMC/B 24 BASE PANEL Bulkhead housing Han 24B EMC Han EMC Housings: Han EMC/B 24 Base Panel Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	0301 09 09-62-824-0301 62 824	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	24B	深度	57
包装方式	Bulk	连接器类型	Base - Panel Mount
外壳涂层	EMC Coating	壳体材料	Aluminum, Die Cast
总长度	166	尺寸/外形	5.512" L x 1.709" W x 1.077" H (140.00mm x 43.40mm x 27.35mm)

产品信息

类型	Bulkhead Housing	样式	Bottom Entry
系列	Han EMC/B	产品子类型	Accessories
锁定位置	Locking Clip on Base Bottom	附件类型	Base Panel
加载位置数	2	适用产品/相关产品	Heavy Duty Power Connector

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
