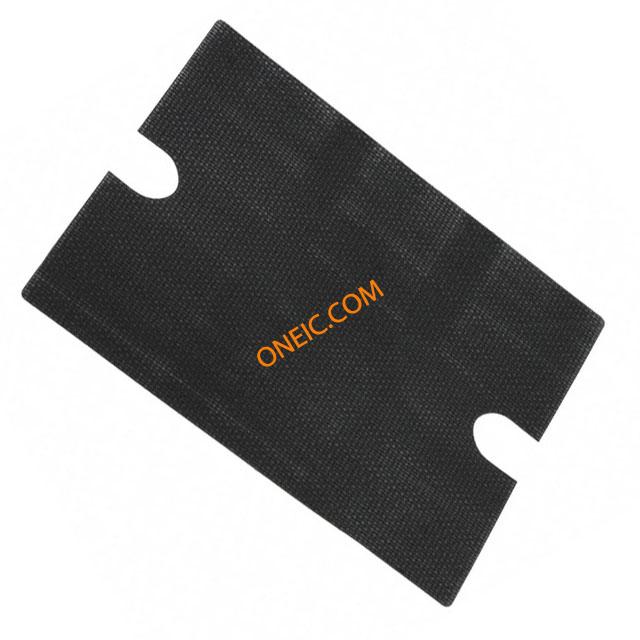

HSP-2

点击放大查看

HSP-2

制造商
Custom Sensors & Technologies (CST)
描述Thrml Mgmt Access Thermal Pad Black 1.49°C.cm²/W 2W/m.K 10Xe2Ohm.cm THERMAL PAD SNGL PHASE WADHESVE SSR Adhesive Thermal Pad - 3 Phase Thermal Interface Products Thermal Pad for 1-phase SSR W/Adhsve THERMAL PAD ThermalPadfor1-phasepanelmountSSRW/Adhsve,.005thick,black Crydom 热导性垫 CWA4890P, 适用于M59 系列
分类
硬件与散热解决方案机架热管理机架热管理

商业参数

标准包装数量24

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
海关税号85479000材料阻燃等级V-0

机械参数

颜色Black深度44.5
形状Rectangular宽度44.5 mm
高度0.127长度57.2 mm
重量0外形尺寸(长x宽)57.15mm x 44.45mm
粘合剂Adhesive - One Side厚度0.0050" (0.127mm)
封装形式Pre-CutSheet总长度57.2
尺寸/外形2.25Lx1.75WIn.抗拉强度25 psi

产品信息

类型Thermal Pad用途Single Phase SSRs, M50 Power Modules
系列Thermal Pads附件类型Thermal Pad
适用产品/相关产品M59 Series

环境参数

温度-60to180°C热阻1.49°C.cm²/W
热阻率10Xe2导热系数2W/m.K
工作温度- 60 C to + 180 C

文档与媒体

Declaration of Conformity
HSP Series
h_sp_25.pdf
