点击放大查看

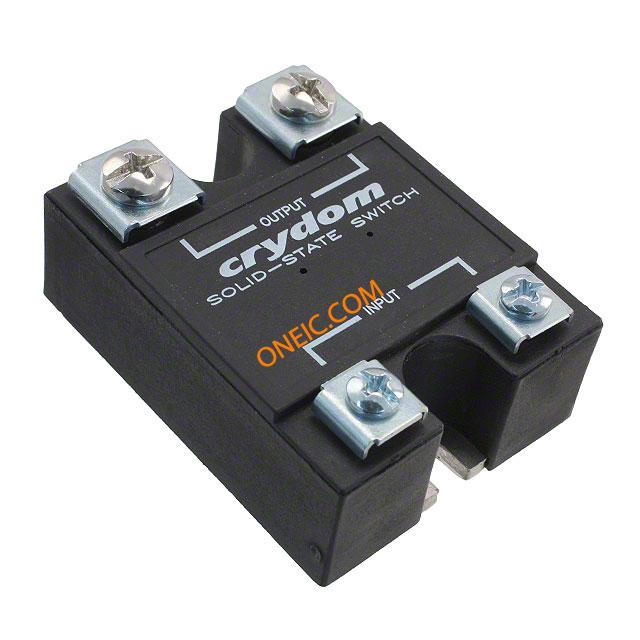

LVD75D80
| 制造商 | Custom Sensors & Technologies (CST) |
| 描述 | Solid State Relays - Industrial Mount 48V/80A 24.0/23.5V Ctrl LVD Relay SSR 12mA 24V DC-IN 80A 75V DC-OUT 4-Pin RELAY SSR LOWVOL DIS 24.0V 80A LVD Series Solid State Relay 75Vdc, 80A Relay;48VDC/80AMP24.0/23.5VDCCTRL,LVD Crydom 80 A 表面贴装安装 单刀单掷 固态继电器, FET输出, 直流切换, 75 V 直流 |
| 分类 |
商业参数
| 其他名称 | CC1789 | 标准包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 输出端 | FET | 电路 | SPST-NO (1 Form A) |
| 输入类型 | DC | 输出类型 | DC |
| 负载电流 | 80A | 开启时间 | 150 ms |
| 负载电压 | 3 ~ 75 V | 额定电压 | 24 |
| 输出电流 | 80 | 供电电压 | 23 VDC to 24 VDC |
| 隔离电压 | 2500(RMS) | 电池组电压 | 3 V dc |
| 最大额定电流 | 80 A | 最小负载要求 | 5 mA |
| 最小输入电压 | 23 ~ 24VDC | 输出电压（最大） | 75 |
| 最小供电电压 | 3 VDC to 75 VDC | 输入逻辑高电平 | 23 → 24 V dc |
| 限压电压（最大） | 75 V dc | 关态电流（最大） | 0.5 mA |
| 静态电流（最大） | 5 mA | 导通电阻（最大） | 8 mOhm |
| 输入偏置电流（最大） | 12 | 峰值脉冲电流（8/20µs） | 220 |
机械参数
| 深度 | 19.8mm | 宽度 | 45.7 |
| 高度 | 58.4mm | 长度 | 45.7mm |
| 重量 | 3.527396 oz | 包装方式 | Bulk |
| 触点形式 | 1 Form A (SPST-NO) | 安装类型 | Screw |
| 端子类型 | Screw | 安装样式 | Panel |
| 封装形式 | Hockey Puck | 总长度 | 58.4 |
| 尺寸/外形 | 45.7 x 19.8 x 58.4mm | 端接样式 | Screw |
| 位数 | 4 | 外壳尺寸-插件 | 22.9 |
| 最小工作高度 | 3 V dc | 典型触点布局 | SPST |
| 中压缩操作力 | 150 ms | ||
产品信息
| 系列 | LVD | 功能 | Y |
| 继电器类型 | Relay | CAD图纸 | 3D CAD Model |
| 开关类型 | DC Switching | 产品子类型 | Industrial Mount |
| 印刷电路板数量 | 4 | ||
环境参数
| 工作温度 | -30 → +80°C | ||
