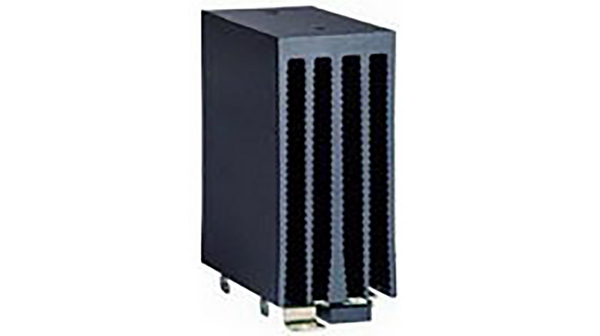

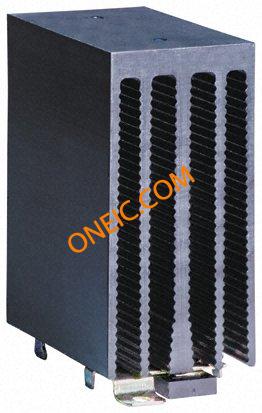

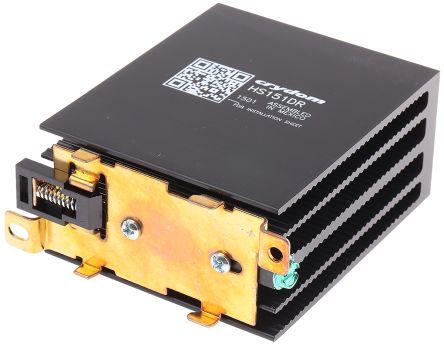

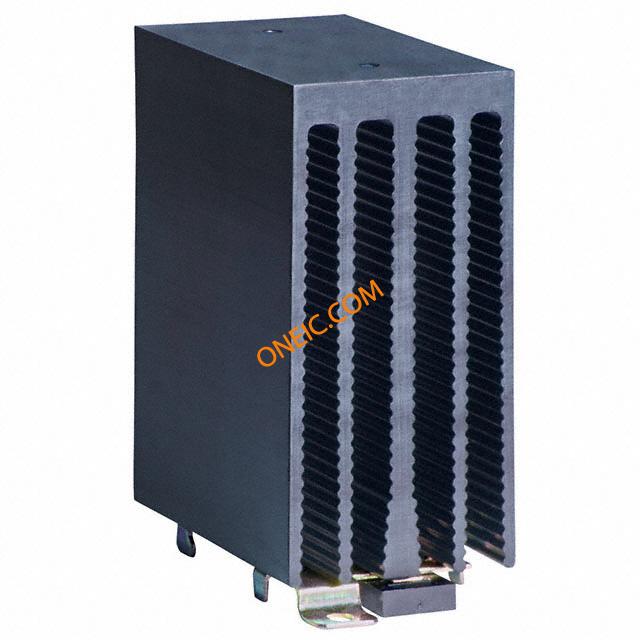

HS151DR

点击放大查看

HS151DR

制造商
Custom Sensors & Technologies (CST)
描述Heat Sinks 1.5 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Aluminum 1.5°C/W Black Anodized HEATSINK SSR 1.5DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink HEATSINK, DIN MOUNT, 1.5DEG C/W HEATSINK,DINRAIL,1.5C/W,-1SSR Heat Sink 1.5 °C/W, HS151DR, Crydom DIN 轨安装 固态继电器散热片, 适用于Crydom SSR
分类
工业电源组件和继电器配件继电器插座及配件
对参数有疑问？问 AI 助手

商业参数

产品Heat Sinks交货时间56 Days
子类别Heat Sink产品类别Heat Sinks
标准包装数量10

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85364900

机械参数

颜色Black深度:81.3mm
宽度45 mm表面处理Black Anodized
高度95 mm长度81 mm
重量0.36材料（通用）Aluminum
散热片高度Unidirectional Fin高度（最大）:95mm
表面类型138in.?,891cm?安装类型:DIN Rail
安装样式DIN Rail总长度:81mm
主要材料PanelMount/Din-RailMount尺寸/外形81mmLx45mmWx106.5mmH,3.19in.Lx1.77in.Wx4.19in.H
固定方法DIN Rail Mount散热器材料Aluminum

产品信息

类型Passive系列HS Series Heat Sinks
应用领域SSR附件类型Heat Sink
规格说明1.5° C/W应用细节1Single,DualSolidStateRelays
适用产品/相关产品Multiple Series

环境参数

热阻1.5 C/W

文档与媒体

PDF 文档
Declaration of Conformity
PDF 文档
h_s151d_r.pdf
PDF 文档
HS151 Series
PDF 文档
Heat Sinks & SSR Assemblies
