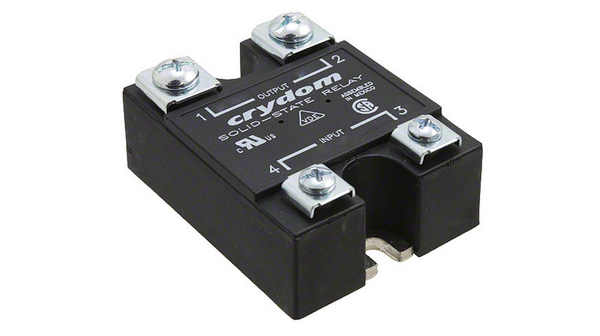

D2D40

点击放大查看

D2D40

制造商
Custom Sensors & Technologies (CST)
描述Solid State Relays - Industrial Mount PM IP00 SSR 200VDC 40A, 3.5-32VDC In Relay SSR 28mA 32V DC-IN 40A 100V DC-OUT 4-Pin RELAY SSR 200VDC 40A PANEL MOUNT SSR 200Vdc/40A, 3.5-32VDC SSR, 200VDC/40A, 3.5-32VDC IN Relay,SolidState,0-200Vdc,40A,PanelMount Solid State Relay Control Voltage: 3.5-32 VDC Load Current: 40 Amps Load Voltage: 200 VDC Output Configuration: 1A SPST-NO Mounting: Panel Mount Solid state relay single phase 3.5...32 VDC, D2D40, Crydom Crydom 40 A 表面贴装安装 单刀单掷 固态继电器, MOSFET输出, 直流切换, 200 V 直流
分类
工业电源组件和继电器固态继电器固态继电器
对参数有疑问？问 AI 助手

商业参数

产品类别Solid State Relays - Industrial Mount标准包装数量20
工厂包装数量1

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85364900

电气参数

输出端MOSFET电路SPST-NO (1 Form A)
输入类型DC输出类型DC
负载电流40A开启时间100 μs
开关模式:DC Switch负载电压0 ~ 200 V
额定电压200VDC输出电流40
供电电压3.5 VDC to 32 VDC介电强度2500V(RMS)
击穿电压:600V隔离电压:2.5kV
电池组电压0 V dc最大额定电流40 A
最小输入电压3.5 ~ 32VDC输出电压（最大）100
电源电压（最大）:32VDC最小供电电压200 VDC
关态电流（最大）0.3 mA静态电流（最大）1 mArms
导通电阻（最大）50 mOhm输入偏置电流（最大）28
峰值脉冲电流（8/20µs）106额定交流电压（相间）:200VDC
驱动电压（最大Rds On，最小Rds On）32VDC

机械参数

深度19.8mm宽度58.4
高度58.4mm长度45.7mm
重量0.1包装方式Bulk
端接方式SaddleClamp安装类型Screw
端子类型Screw安装样式Panel
引脚数4封装形式SSR
总长度45.7端接样式Screw
位数4外壳尺寸-插件23
典型触点布局SPST

产品信息

系列1-DC继电器类型Relay
CAD图纸3D CAD Model开关类型DC Switching
制造商全称1DCSeries产品子类型Industrial Mount
控制/显示类型:DC印刷电路板数量4

环境参数

工作温度80

文档与媒体

PDF 文档
Declaration of Conformity
PDF 文档
Control Relays & I/O Modules Brochure
PDF 文档
1-DC Series
PDF 文档
1_dc.pdf
