点击放大查看

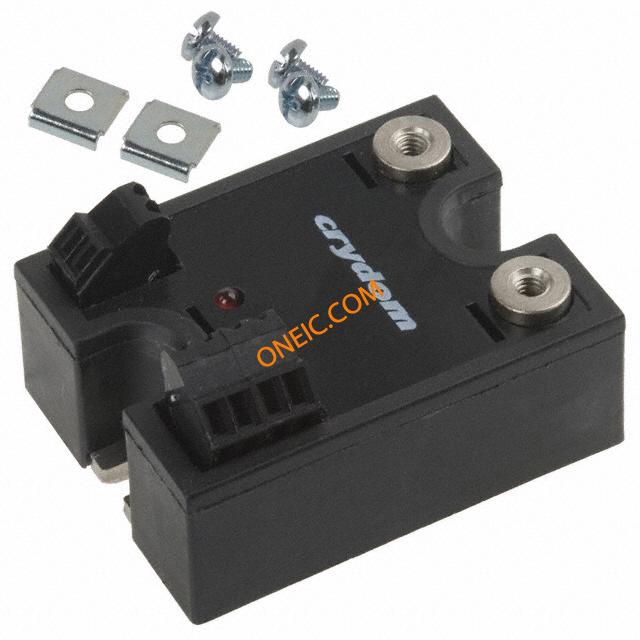

MCTC4850KHD
| 制造商 | Custom Sensors & Technologies (CST) |
| 描述 | Solid State Relays - Industrial Mount CTRLR TEMP SSR 480V 50A AC OUT CTRLR TEMP SSR 480V 50A AC OUT Temperature Controller Temperature Range: +300 to +700F Load Current: 50 Amps Load Voltage: 48-530 VAC Setpoint Input: 4-20 mA |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 输出端 | SCR | 电路 | SPST-NO (1 Form A) |
| 输出类型 | AC, Thermocouple Controlled | 负载电流 | 50A |
| 负载电压 | 48 ~ 530 V | 供电电压 | 8 VDC to 32 VDC |
| 最大额定电流 | 50 A | 最小输入电压 | 8 ~ 32VDC |
| 最小供电电压 | 48 VAC to 530 VAC | ||
机械参数
| 包装方式 | Bulk | 安装类型 | Chassis Mount or Panel Mount |
| 安装样式 | Panel | 封装形式 | Hockey Puck |
| 端接样式 | Screw | ||
产品信息
| 类型 | Controllers | 系列 | MCTC |
| 继电器类型 | Relay | 产品子类型 | Industrial Mount |
| 卡标准 | Temperature Controller | 其他规格 | 4-20 mA |
环境参数
| 温度范围 | +300 to +700°F | ||
