点击放大查看

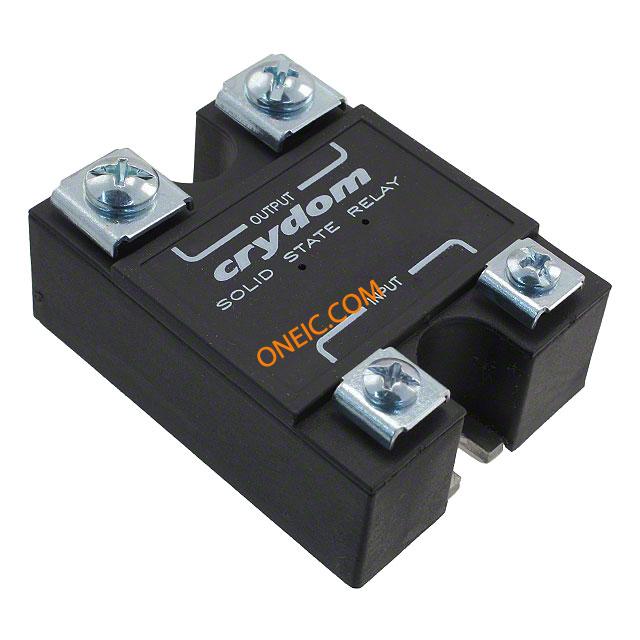

H16WD6090-10
| 制造商 | Custom Sensors & Technologies (CST) |
| 描述 | Solid State Relays - Industrial Mount IP00 SSR 660VAC/90A DC In, RN RELAY SSR 90A 660VAC RAND DC IN RelaySolidStateIP00SSR,660VAC/90A,DCIn,RN |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 输出端 | SCR | 电路 | SPST-NO (1 Form A) |
| 输出类型 | AC | 负载电流 | 90A |
| 负载电压 | 48 ~ 660 V | 供电电压 | 4 VDC to 32 VDC |
| 最大额定电流 | 90 A | 最小输入电压 | 4 ~ 32VDC |
| 最小供电电压 | 48 VAC to 660 VAC | ||
机械参数
| 重量 | 3.051198 oz | 包装方式 | Bulk |
| 安装类型 | Chassis Mount or Panel Mount | 安装样式 | Panel |
| 封装形式 | Hockey Puck | 端接样式 | Screw |
产品信息
| 系列 | H16WD | 继电器类型 | Relay |
| 产品子类型 | Industrial Mount | ||
环境参数
| 工作温度 | + 80 C | ||
