点击放大查看

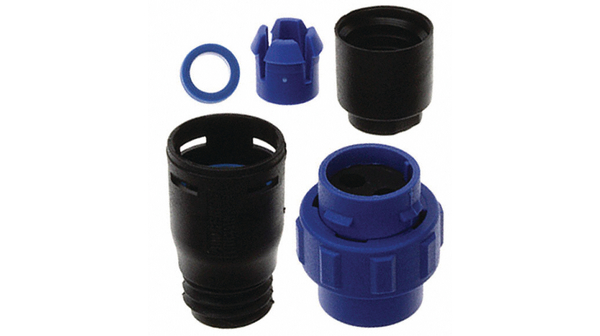

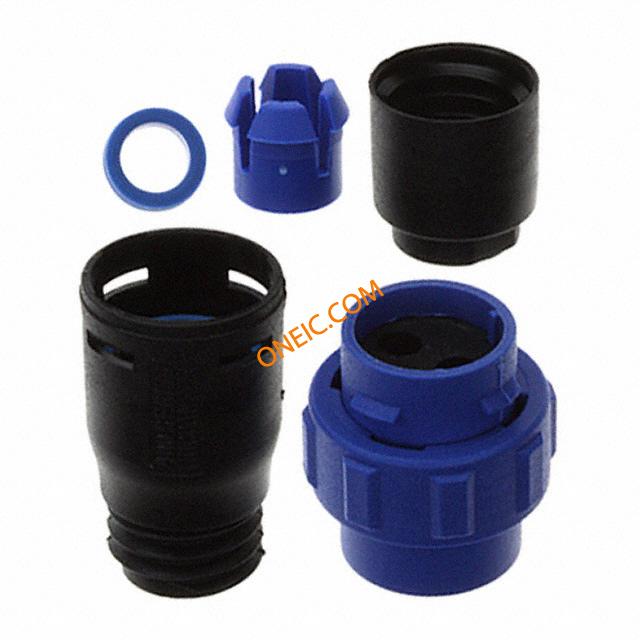

PX0410/02P/5560
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE FLEX PLUG CONN HSNG PLUG CABLE 2POS PIN 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Crimp ST Cable Mount 2 Terminal 1 Port PLUG, FREE, 2WAY CONN HSNG PLUG INLINE 2POS PIN Connector,Sealed,Cable,2contact,8A Cable plug Buccaneer 400, 2-pole 2, PX0410/02P/5560, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :5mohm | 最大额定电流 | 8A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.005 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 端接样式 | Crimp / Solder |
| 第一触头极性 | Male | 触点数 | 2 |
| 位数 | 2 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :24AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :6.0mm |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | Buccaneer | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
