点击放大查看

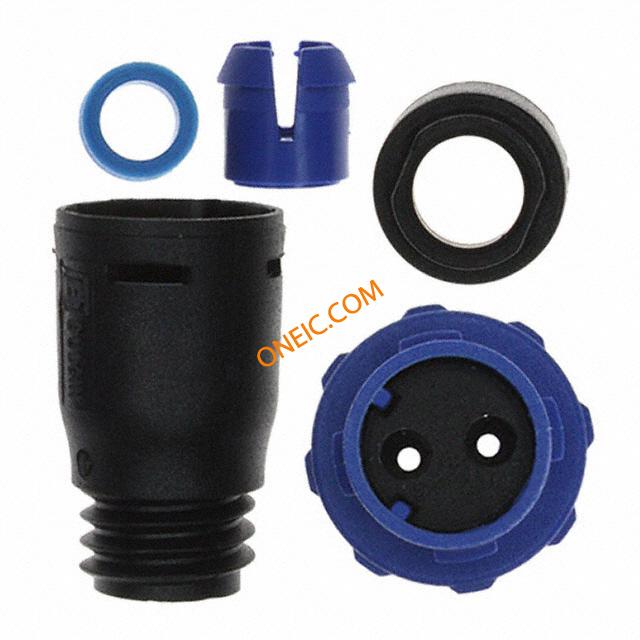

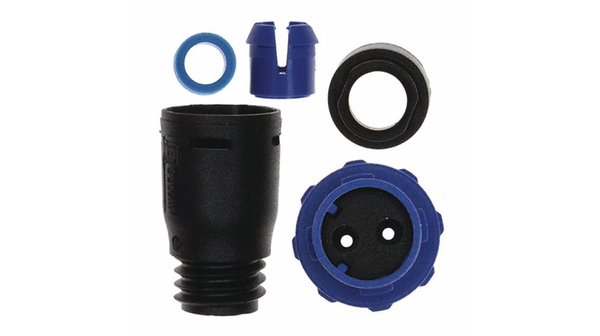

PX0411/02S/5560
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE IN-LINE SKT CONN HSNG RCPT IN-LINE 2POS SKT 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, IN-LINE, 2WAY CableConnector,In-Line;2;Socket;5.5to6.0mm;FlexIn-LineBody;8A;250 Coupling socket Buccaneer 400, 2-pole 2, PX0411/02S/5560, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :5mohm | 最大额定电流 | 8A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.005 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 5.5-6mm | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Female | 配接方向 | Threaded |
| 触点数 | 2 | 位数 | 2 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - AWG | :24AWG | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
