点击放大查看

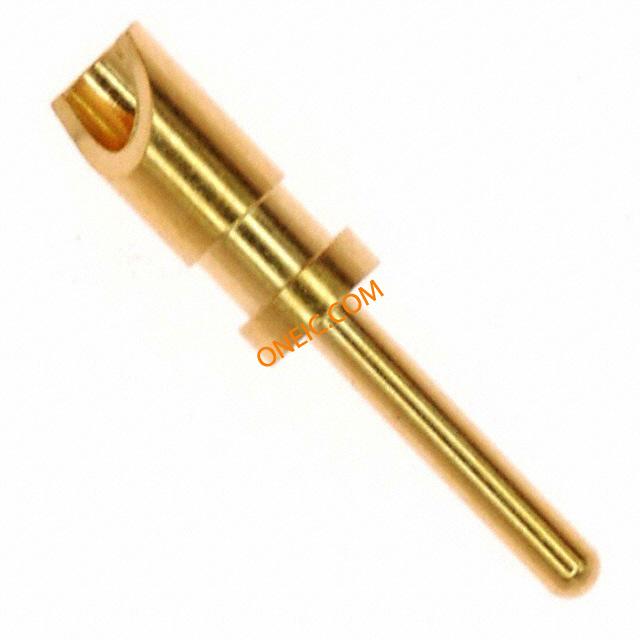

SA3350
| 制造商 | Bulgin |
| 描述 | Standard Circular Contacts CRIMP PIN 2&3P 20AWG 1 = 1 PKT of 10/pcs CONT PIN 8A CRMP 20-24AWG 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 24 to 20AWG Contact PIN Crimp ST Cable Mount CRIMP PIN, 20-24AWG Contacts,CrimpPin,2&3Pole Crimp contact, male, for 2 and 3-pole, SA3350, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 24 → 20 AWG 线规格 |
| 分类 |
商业参数
| 其他名称 | 708-1087 | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 5mΩ |
| 最大额定电流 | 8 A | ||
机械参数
| 重量 | 0.001001 | 包装方式 | Bulk |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触点尺寸 | :20 | 插针或插孔 | Pin |
| 接触镀层 | Gold | 触头材料 | Copper Alloy |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 线规或范围 - AWG | :24AWG | 线规或范围 - mm² | :0.5mm² |
| 外径-未扩张 | :0.81mm | ||
产品信息
| 连接器性别 | Male | 系列 | 400 |
| 适用产品/相关产品 | :400 Series Buccaneer Connector System | ||
环境参数
| 工作温度 | 80°C | ||
文档与媒体
