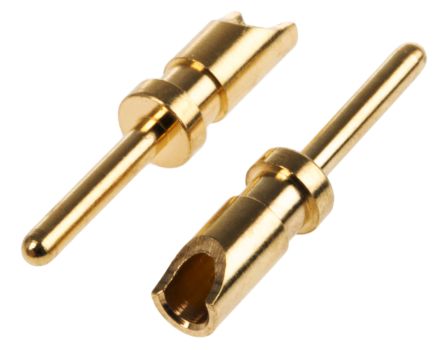

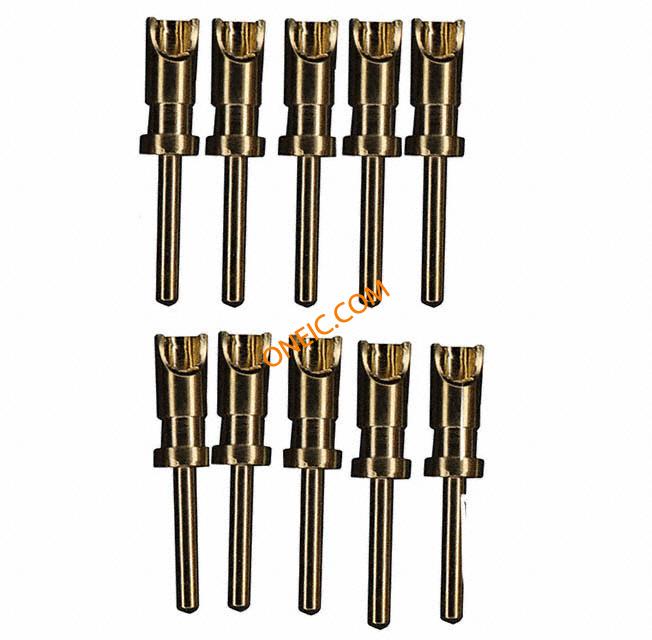

SA3350/1
| 制造商 | Bulgin |
| 描述 | Standard Circular Contacts SOLDER PIN 2&3P AWG 1 = 1 PKT of 10/pcs CONT PIN 8A SLD 20-24AWG 1=10PC 8A solder pin contact,20-24awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 20-24AWG, SOLDER Contacts,Solder,Pin,2and3Pole Contact; male; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for , 2 and 3-pole, SA3350/1, Bulgin Bulgin 400 系列 8A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 24 → 20 AWG 线规格 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 8 A |
| 连接器类型 - 电压输入 | 2pin connectors, 3pin connectors | ||
机械参数
| 重量 | 0.001001 | 包装方式 | Bulk |
| 导线线规 | 20-24 AWG | 安装类型 | soldering |
| 插针或插孔 | Pin | 连接器类型 | male |
| 接触镀层 | Gold | 触头材料 | Copper Alloy |
| 包装数量 | 10 | 连接器 - 电缆 | contact |
| 第一触头极性 | Pin (Male) | 接触件端接 | Solder Cup |
| 线规或范围 - AWG | :24AWG | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 10 | 系列 | Buccaneer 400 |
| 适配器系列 | Buccaneer 400 | 单元数量 | 1 |
| 适用产品/相关产品 | :Buccaneer 400 Series Circular Connectors | ||
