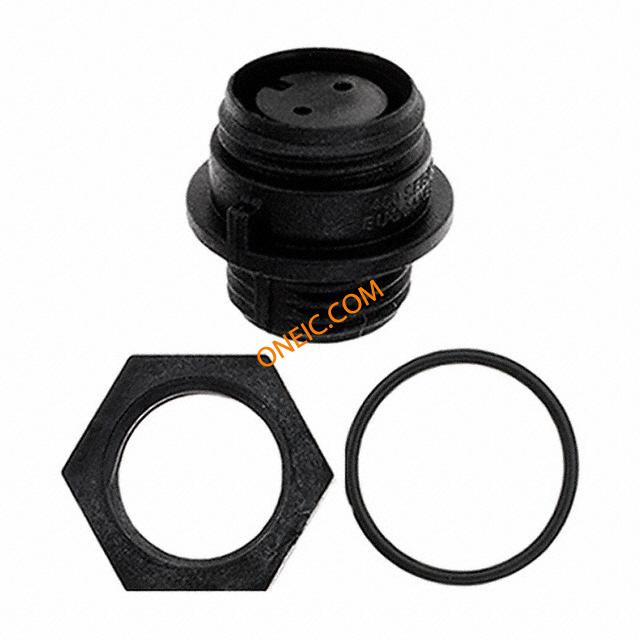

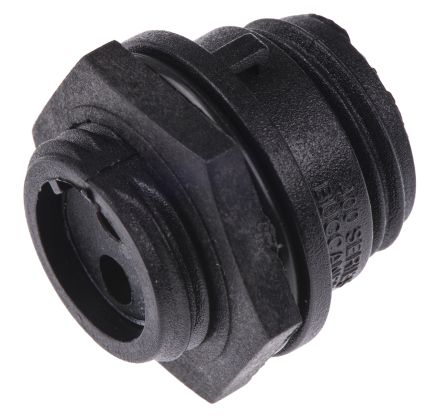

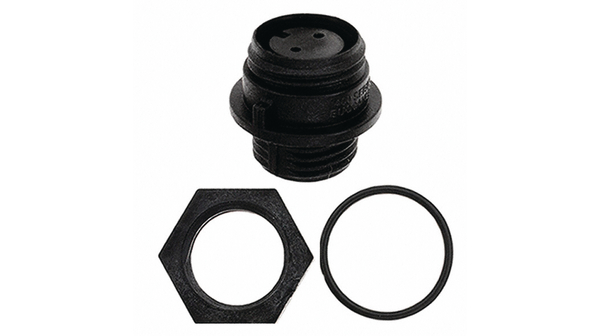

PX0412/02S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 2POS SKT 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Crimp ST Panel Mount 2 Terminal 1 Port Connector;Socket;2;20to24AWG;CrimpandSolder;8A;250VAC/VDC;UL94V-0 Connector: circular; socket; female; PIN:2; w/o terminals; IP68 appliance plug Buccaneer 400, 2-pole 2, PX0412/02S, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 250 V ac/dc | 极数 | 2 |
| 最大额定电流 | 8A | 连接器类型 - 电压输入 | w/o terminals |
| 额定电流 - 设备输入口 | 8 | 保护电压（VP）（2416） | IP 68 |
机械参数
| 重量 | 0.01 kg | 包装方式 | Bulk |
| 导线线规 | 20-24 | 方向 | Keyed |
| 外壳样式 | Receptacle | 本体尺寸 | Ø22 x 19.9mm |
| 端接方式 | Crimp | 触点形式 | Crimp and Solder Cup |
| 触头类型 | Crimp and Solder Cup | 基体材料 | polyamide |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 行程角度 | Straight |
| 电缆端类型 | 3...7 mm | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Panel | 外壳材料（壳体） | Plastic |
| 锁定特性 | threaded joint, external thread | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 端接排数 | 压接 |
| 连接器 - 电缆 | socket | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 2 |
| 位数 | 2 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Polyamide | ||
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | PanelSocket | 系列 | Buccaneer |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 400 | 单元数量 | 1 |
| 输出配置 | Panel Mount, Bulkhead - Rear Side Nut | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | +80°C |
