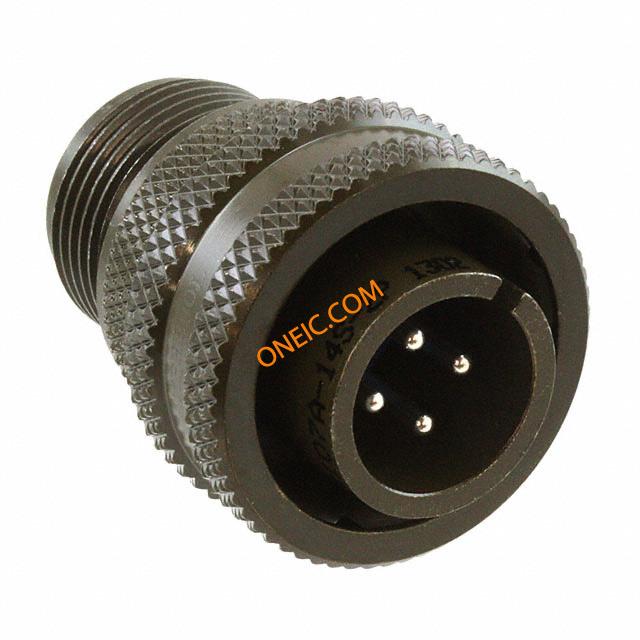

97-3107A-14S-2P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 4 POS Solder ST Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 4POS STRGHT PIN QD connector;metal circ;str plug;qd;size 14s;4 #16 solder pin contact;olive drab Circular MIL Spec Connector Friction Fit 4 Pin connector, metal circ, str plug, qd, size 14s, 4 #16 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973107A14S2P | 零件号别名 | 605-4608 97-3107A-14S-2P |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 200VAC, 250VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 14S | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | quick disconnect plug |
| 端接方式 | Solder | 触头类型 | pin contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Quick Disconnect | 插入角度 | 14S-2 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 4 | 介电材料 | Diallyl-Phthalate |
| 位数 | 4 | 外壳尺寸-插件 | 14S-2 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 4#16 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3062 Size 12S, 14, 14S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, connector size 12sl, 14, 14s, olive drab
97-3057-1007
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057a cable clamp;connector size 12sl;14;14s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 12SL, 14, 14S CABLE CLAMP, SIZE 12SL, 14, 14S CABLE GLAND, SHELL SIZE 12 connector accessory, ms3057a cable clamp, connector size 12sl, 14, 14s, olive drab
97-3057-1007-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CBL CLAMP SZ 12SL, 14, 14S Straight multipole cable clamp,Size 14 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 12SL, 14, 14S CIRCULAR CABLE CLAMP SIZE 12SL/14/14S, ZINC ALLOY CIRCULAR CLAMP, SIZE 14/14S, ALUMINIUM connector accessory, cable clamp with rubber bushing, size 12sl, 14, 14s, olive drab Amphenol 97 系列 橄榄色 压铸件锌 电缆夹, 11.1mm 捆束直径
97-3102A-14S-2S
amphenol
Conn MIL-C-5015 Circular SKT 4 POS Solder ST Box Mount 4 Terminal 1 Port Circular MIL Spec Connector 4P Sz 14S Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 4POS BOX MNT W/SKT connector;metal circ;box recept;size 14s;4 #16 solder socket contact;olive drab CIRCULAR CONN, RCPT, SIZE 14S, 4POS, BOX connector, metal circ, box recept, size 14s, 4 #16 solder socket contact, olive drab
97-3101A-14S-2S
amphenol
Conn MIL-C-5015 Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT CBL MNT 4POS W/SOCK connector;metal circ;cable recept;size 14s;4 #16 solder socket cont;olive drab Circular MIL Spec Connector 4P Sz 14S Sckt Cable Receptacle Solder RECEPT., FREE, SIZE 14S, 4WAY, SKT connector, metal circ, cable recept, size 14s, 4 #16 solder socket cont, olive drab

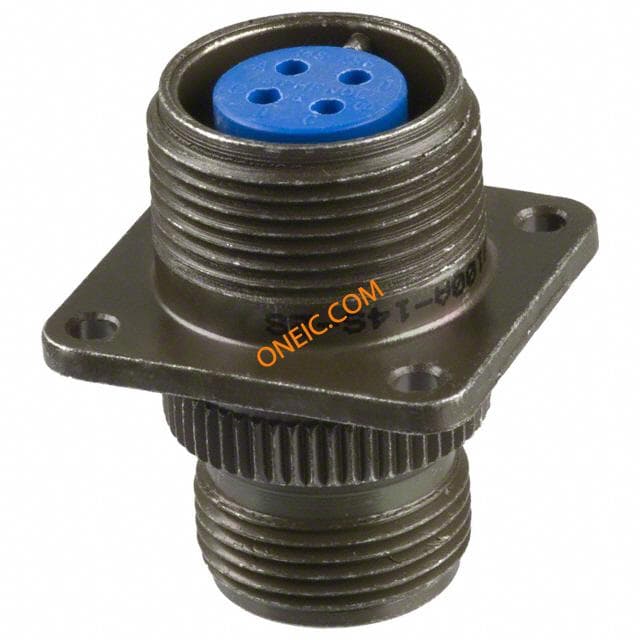

97-3100A-14S-2S
