97-3101A-14S-2S
| 制造商 | |

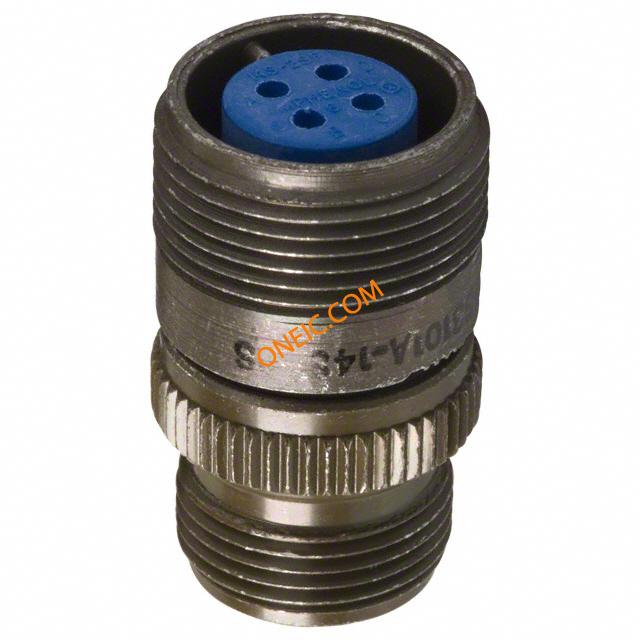

| 描述 | Conn MIL-C-5015 Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT CBL MNT 4POS W/SOCK connector;metal circ;cable recept;size 14s;4 #16 solder socket cont;olive drab Circular MIL Spec Connector 4P Sz 14S Sckt Cable Receptacle Solder RECEPT., FREE, SIZE 14S, 4WAY, SKT connector, metal circ, cable recept, size 14s, 4 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 零件号别名 | 97-3101A-14S-2S(0850) | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构 | :MIL-C-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 200VAC, 250VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.018 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 14S |
| 导线线规 | 16-22 | 方向 | N (Normal) |
| 外壳样式 | cable connecting receptacle | 端接方式 | Solder |
| 触头类型 | socket contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Cable | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 14S-2 | 本体材料 | :Aluminium |
| 触头材料 | :Copper | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | :Solder | 介电材料 | Diallyl-Phthalate |
| 位数 | 4 | 外壳尺寸-插件 | 14S-2 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |

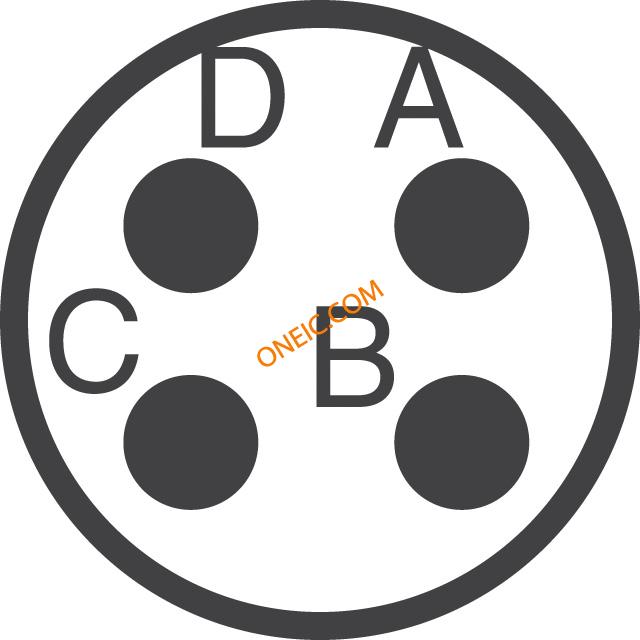

| 典型触点布局 | 4#16 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
