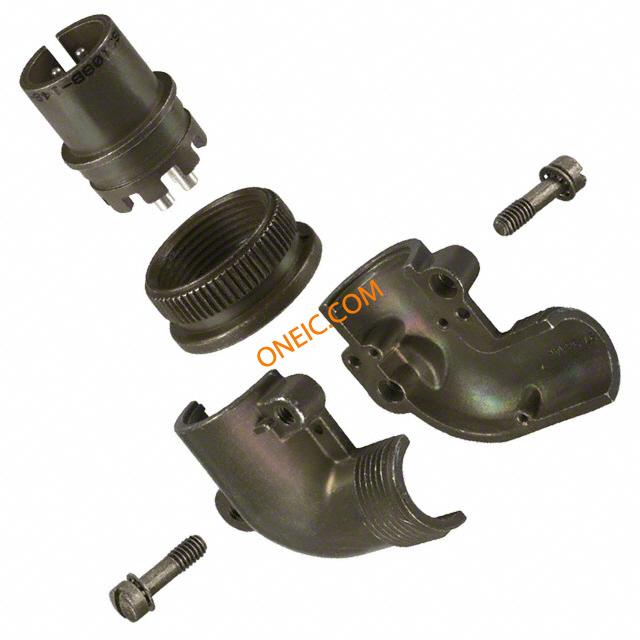

点击放大查看
97-3108B-14S-2P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 4 POS Solder RA Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG RT ANG 4POS W/PINS connector;metal circ;rt angle plug;size 14s;4 #16 solder pin contact;olive drab connector, metal circ, rt angle plug, size14s, 4 #16 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 10-820166-02P | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 200VAC, 250VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Split |
| 外壳尺寸 | 14S | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | angle plug |
| 端接方式 | Solder | 触头类型 | pin contacts |
| 安装类型 | Cable Mount | 行程角度 | Right |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 封装形式 | Metal | 外壳材料（壳体） | split backshell |
| 连接器用途 | Threaded | 插入角度 | 14S-2 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 触点数 | 4 | 介电材料 | Diallyl-Phthalate |
| 位数 | 4 | 外壳尺寸-插件 | 14S-2 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 4#16 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | B |
| 连接器性别 | PL | 制造商全称 | 97 Series |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
