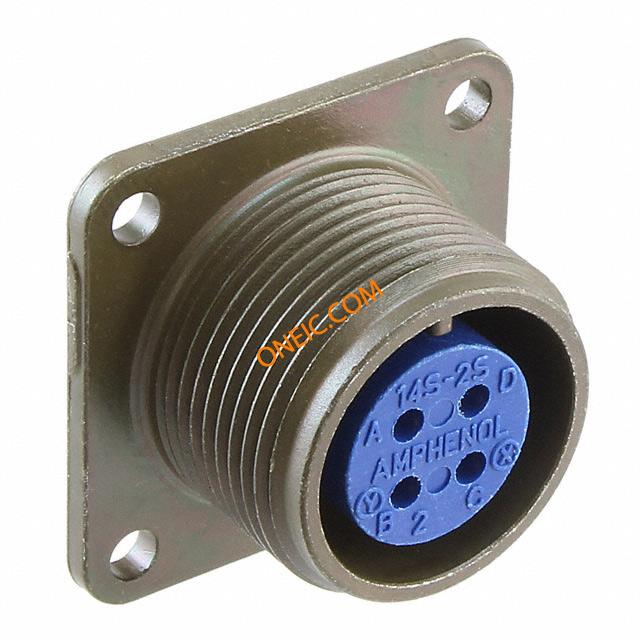

97-3102A-14S-2S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 4 POS Solder ST Box Mount 4 Terminal 1 Port Circular MIL Spec Connector 4P Sz 14S Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 4POS BOX MNT W/SKT connector;metal circ;box recept;size 14s;4 #16 solder socket contact;olive drab CIRCULAR CONN, RCPT, SIZE 14S, 4POS, BOX connector, metal circ, box recept, size 14s, 4 #16 solder socket contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973102A14S2S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85366910 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.018 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 14 |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | Box Mount | 端接方式 | Solder |
| 触头类型 | socket contacts | 安装类型 | Box Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Panel | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 14S-2 | 本体材料 | :Aluminium Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 介电材料 | Diallyl-Phthalate |
| 位数 | 4 | 外壳尺寸-插件 | 14S-2 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 4#16 | 第一连接器安装类型 | :Box |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
