点击放大查看

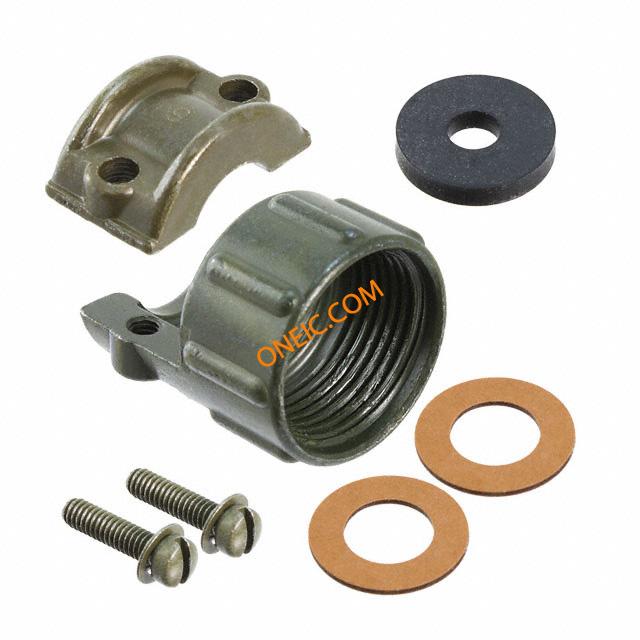

97-3057-6
| 制造商 | |
| 描述 | Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3062 Size 12S, 14, 14S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, connector size 12sl, 14, 14s, olive drab |
| 分类 |
商业参数
| 产品 | Cable Clamps | 其他名称 | 9730576 |
| 零件号别名 | U10-825939-006 | 产品类别 | Circular MIL Spec Strain Reliefs & Adapters |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | ||
机械参数
| 重量 | 0.02977 | 外壳尺寸 | 12SL, 14, 14S |
| 螺纹尺寸 | 3/4-20 | 基体材料 | Aluminum Alloy |
| 电缆开口 | 0.438" (11.10mm) | 电缆直径 | 11.1 mm |
| 配接方向 | Threaded | 外壳尺寸-插件 | 12SL, 14, 14S |
| 绝缘材料 - 材质 | :Zinc Alloy | 供应商器件封装 | Straight |
| 外径-未扩张 | :11.1mm | ||
产品信息
| 类型 | Cable Clamp | 系列 | 97 |
| 产品特性 | Washers | 适用产品/相关产品 | :Circular Connectors |
