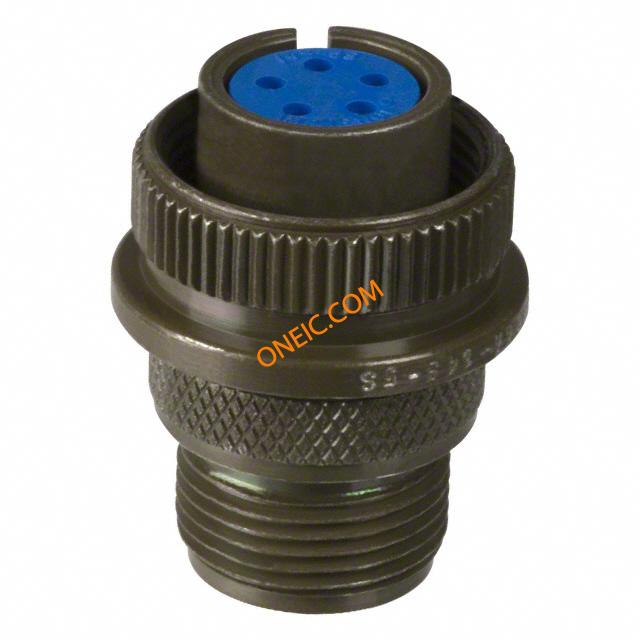

97-3106A-14S-5S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 5 POS Solder ST Cable Mount 5 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 5POS W/SOCKETS connector;metal circ;stright plug;size 14s;5 #16 solder socket cont;olive drab CIRCULAR CONNECTOR PLUG SIZE 14S, 5POS, CABLE connector, metal circ, stright plug, size 14s, 5 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 200VAC, 250VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.023 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 14S |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触头类型 | socket contacts | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 14S-5 | 本体材料 | :Aluminium Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 第一触头极性 | :Socket | 触点数 | 5 |
| 介电材料 | Diallyl-Phthalate | 位数 | 5 |

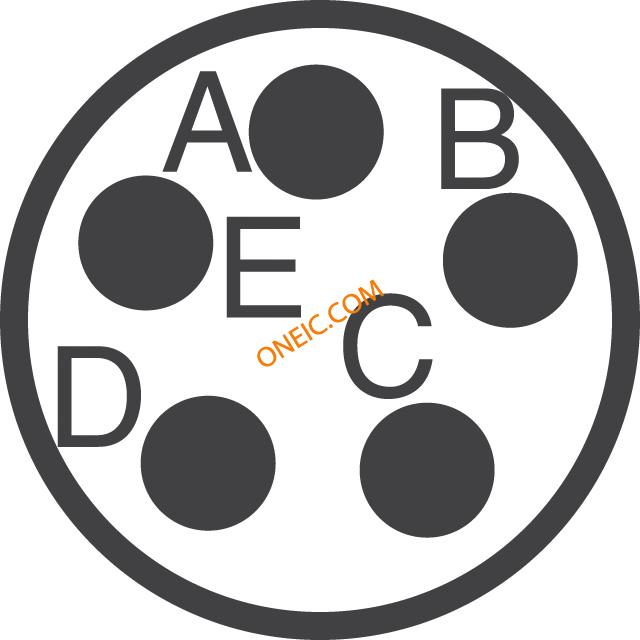

| 外壳尺寸-插件 | 14S-5 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 5#16 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | :97 |
| 制造商全称 | 97 Series | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3102A-14S-5P
amphenol
Conn MIL-C-5015 Circular PIN 5 POS Solder ST Box Mount 5 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 5POS BOX MNT W/PIN connector;metal circ;box recept;size 14s;5 #16 solder pin contact;olive drab Circular MIL Spec Connector 5P Sz 14S Box Mount Pin Recept Solder CIRCULAR CONN, RECPT, SIZE 14S, 5POS, BOX connector, metal circ, box recept, size 14s, 5 #16 solder pin contact, olive drab

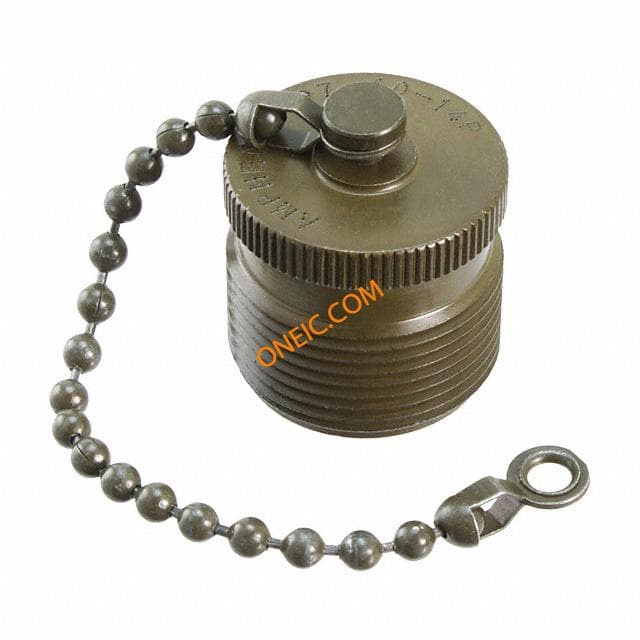

97-60-14P
