点击放大查看

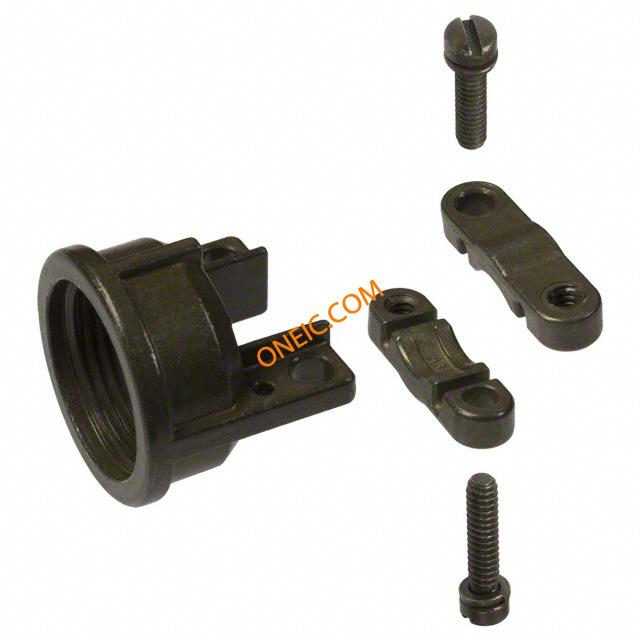

97-3057-1007
| 制造商 | |
| 描述 | Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S connector accessory;ms3057a cable clamp;connector size 12sl;14;14s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 12SL, 14, 14S CABLE CLAMP, SIZE 12SL, 14, 14S CABLE GLAND, SHELL SIZE 12 connector accessory, ms3057a cable clamp, connector size 12sl, 14, 14s, olive drab |
| 分类 |
商业参数
| 产品 | Cable Clamps | 零件号别名 | U10-824810-007 |
| 产品类别 | Circular MIL Spec Strain Reliefs & Adapters | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85366930 | 认证机构 | :MIL-DTL-5015 |
机械参数
| 重量 | 0.001 | 外壳尺寸 | 12SL, 14, 14S |
| 螺纹尺寸 | 3/4-20 | 重量（g） | 29.20000 |
| 基体材料 | Aluminum Alloy | 电缆开口 | 0.438" (11.10mm) |
| 电缆直径 | 11.1 mm | 配接方向 | Threaded |
| 外壳尺寸-插件 | 12SL, 14, 14S | 绝缘材料 - 材质 | :Zinc Alloy |
| 供应商器件封装 | Straight | 外径-未扩张 | :11.1mm |
产品信息
| 类型 | Cable Clamp | 系列 | 97 |
| 附件类型 | :Cable Clamp | 射频系列/标准 | 97 |
| 适用产品/相关产品 | :Amphenol's 97 Series | ||
文档与媒体
相关型号

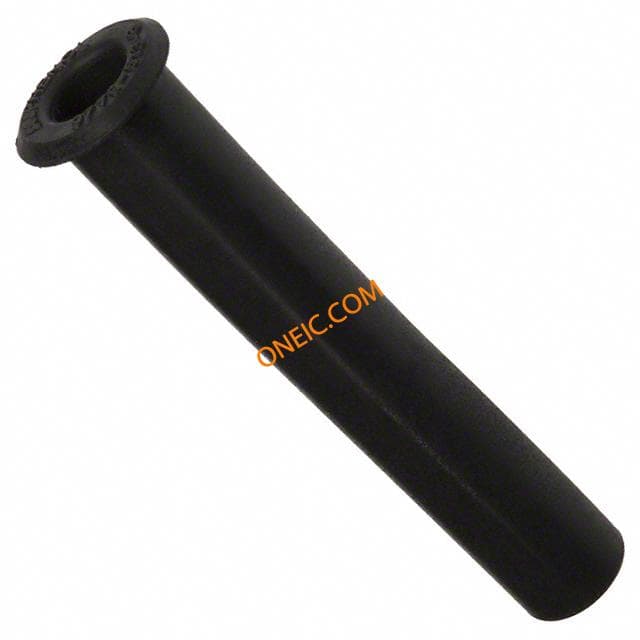

97-79-513-6
