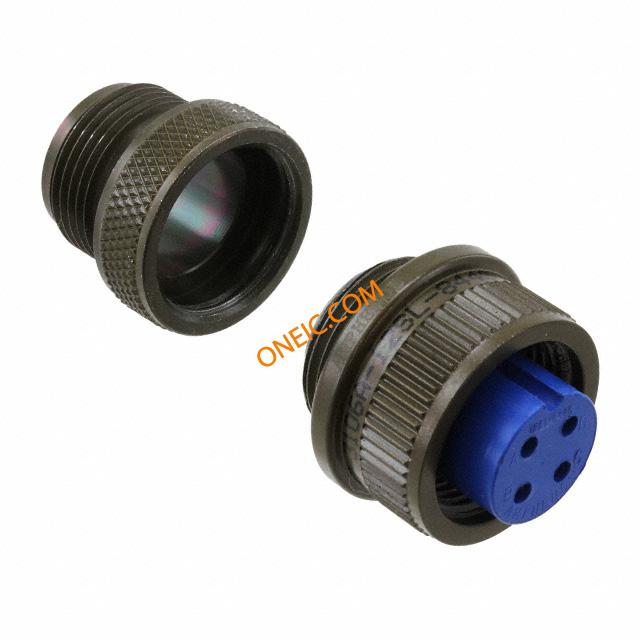

97-3106A-12SL-844S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port Circular MIL Spec Connector 12SL-844S SOCKET CONN PLUG 4POS STRAIGHT W/SKT connector;metal circ;str plug;solid bkshl;size 12sl;4#16 solder socket;olive CIRCULAR, PLUG, 12SL-844, CABLE connector, metal circ, str plug, solid bkshl, size 12sl, 4#16 solder socket, olive |
| 分类 |
商业参数
| 其他名称 | 973106A12SL844S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.023 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 12 |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | Potting | 端接方式 | Solder |
| 触头类型 | Socket | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 12SL-844 | 本体材料 | :Aluminium |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 4 | 接触件端接 | :Solder |
| 介电材料 | Diallyl-Phthalate | 位数 | 4 |
| 外壳尺寸-插件 | 12SL-844 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 4#16 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号

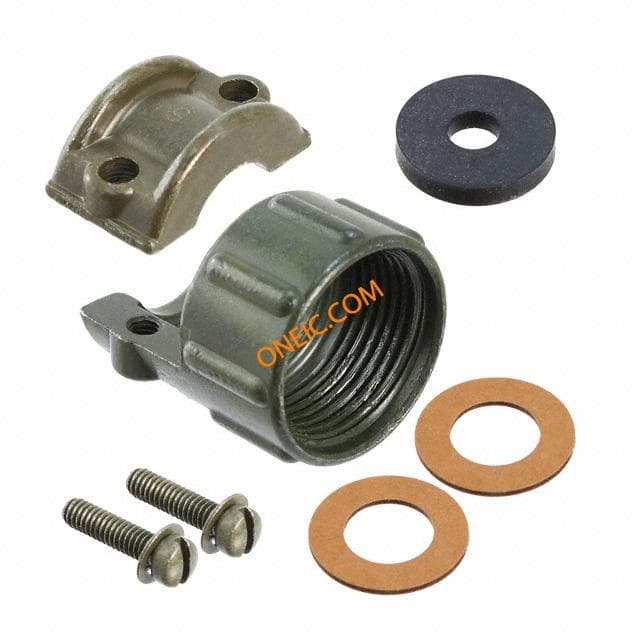

97-3057-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CBL CLAMP SZ 12SL, 14, 14S Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3062 Size 12S, 14, 14S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, connector size 12sl, 14, 14s, olive drab

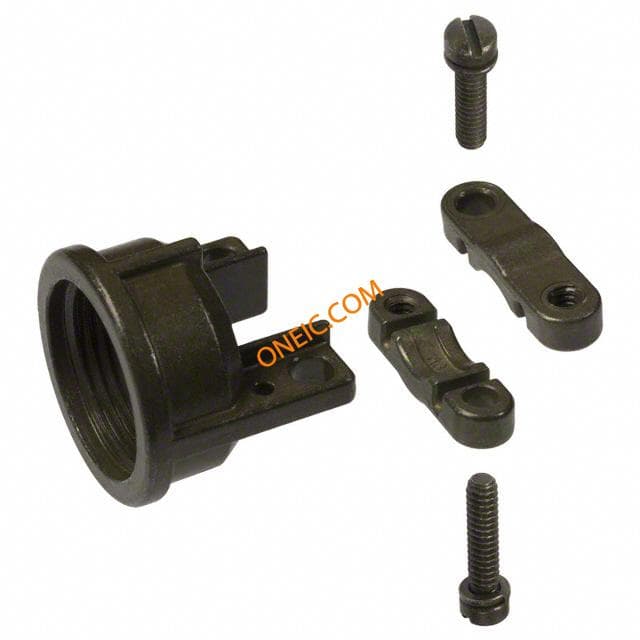

97-3057-1007
