点击放大查看

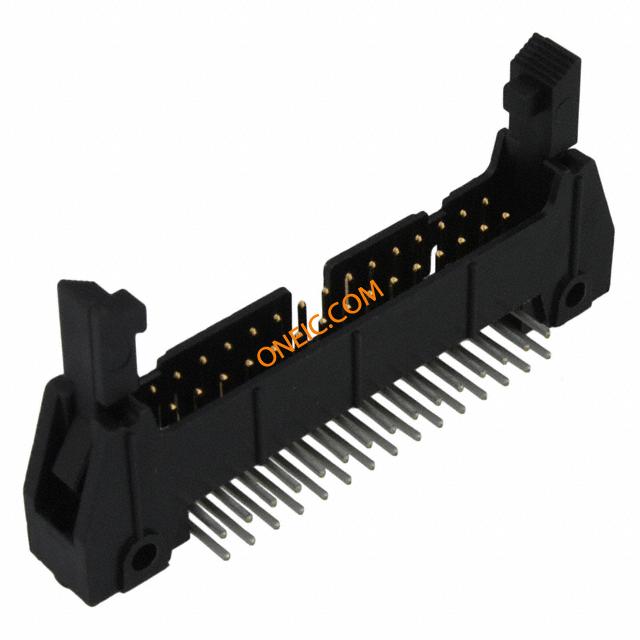

N3440-5302RB
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30PS R/A LONG LATCH Headers & Wire Housings 30P R/A LONG PIN SOLDER TAIL 30u GOLD |
| 分类 |
商业参数
| 零件号别名 | 05111162770 80400031789 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 30 | 位数 | 30 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 3000 | 产品子类型 | Headers |
| 加载位置数 | All | ||
相关型号
3419-7600
3M Electronic Solutions Division
Headers & Wire Housings 30P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable SOCKET CONN 30 CONT CLOSED W/POL WIRE-BOARD CONN, SOCKET, 30POS, 2.54MM
CHG-2030-001010-KCP
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 30POS 28-26 AWG
3419-7000
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 30POS CLOSE END 30AU
89130-0001HA
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount CONN SOCKET 30POS IDC DUAL GOLD
CHG-2030-001010-KEP
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 30POS 24-22 AWG Headers & Wire Housings 30 POS 2.54MM HOUSING SKT
CHG-2030-J01010-KCP
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm Crimp ST Cable Mount .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 30POS 28-26 AWG 3M CHG Series 2.54mm 30 Way 2 Row Right Angle PCB Socket Cable Mount SOCKET, IDC, 2.54MM, 30WAY Conn;Rect;Socket;Wiremnt;0.1inPitch;30Pos;2Row;28-26AWG;IDC;CHGSer;Polar 3M CHG 系列 2行 30路 直角 2.54mm节距 电缆安装 印刷电路板插座
89130-0001
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 30 POS IDC SOCKET GOLD Headers & Wire Housings 30 POSITION SOCKET DUAL RECESS COVER IDCRibbonCableSocket
D89130-0031HK
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount Bulk .100" Ã .100" for .050" Pitch Cable CONN 30POS IDC SOCKET 10GOLD Headers & Wire Housings 30P SKT W/O STRN REL W/O CNTR BUMP 10U AU WIRE-BOARD CONN, SOCKET, 30POS, 2.54MM
D89130-0101HK
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount .100" Ã .100" for .050" Pitch Cable CONN 30POS IDC SOCKET GOLD W/POL
D89130-0001HK
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount .100" Ã .100" for .050" Pitch Cable CONN 30POS IDC SOCKET GOLD
D89130-0131HK
3m interconnect solutions
Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount Bulk .100" Ã .100" for .050" Pitch Cable CONN 30POS IDC SOCKET 10AU W/POL Headers & Wire Housings 30P SKT W/O STRN REL W/CNTR BUMP 10U AU WIRE-BOARD CONN, SOCKET, 30POS, 2.54MM

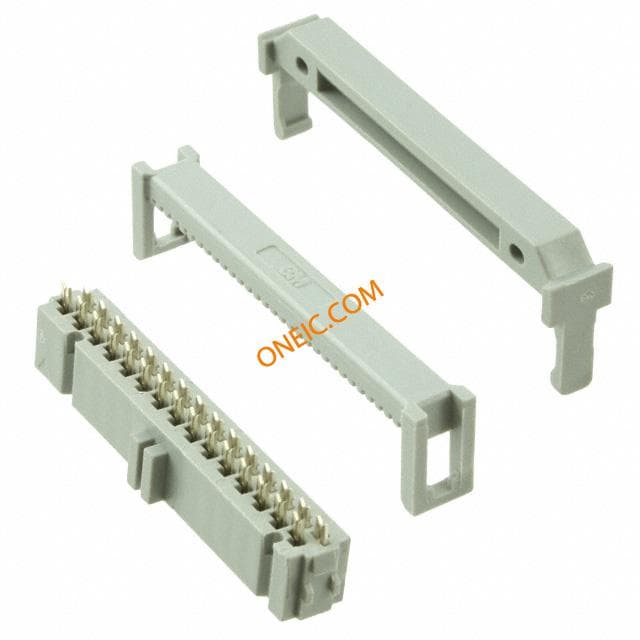

89130-0103
