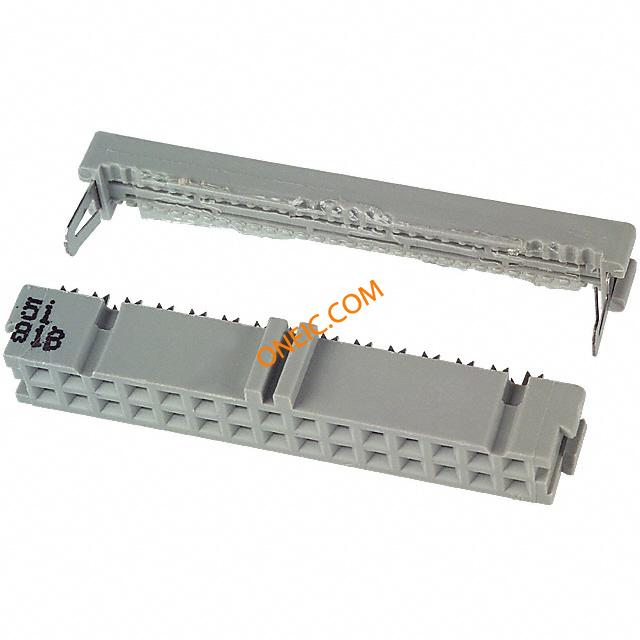

3419-7600

点击放大查看

3419-7600

制造商
3M Company
描述Headers & Wire Housings 30P IDC SOCKET .100" × .100" Wiremount for .050" Pitch Cable SOCKET CONN 30 CONT CLOSED W/POL WIRE-BOARD CONN, SOCKET, 30POS, 2.54MM
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

零件号别名05400719592 80610151864产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSRoHS Compliant海关税号85369010
RoHS合规（认证）Yes

电气参数

量程（°/s）:3M - 3000 Series

机械参数

颜色Gray间距2.54 mm
重量1.550 lbs包装方式Bulk
导线类型Ribbon Cable导线线规26-28 AWG
排间距0.100" (2.54mm)触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold安装样式Free Hanging
排数2触头材料:Copper Alloy
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数30
接触件端接:IDC / IDT位数30
接触镀层厚度30µin (0.76µm)

产品信息

类型Ribbon Cable连接器性别:Receptacle
系列3000产品特性Closed End, Polarizing Key
产品子类型Receptacles / Sockets - Housings

文档与媒体

在线文档
3000 Series Wiremount Socket
