点击放大查看

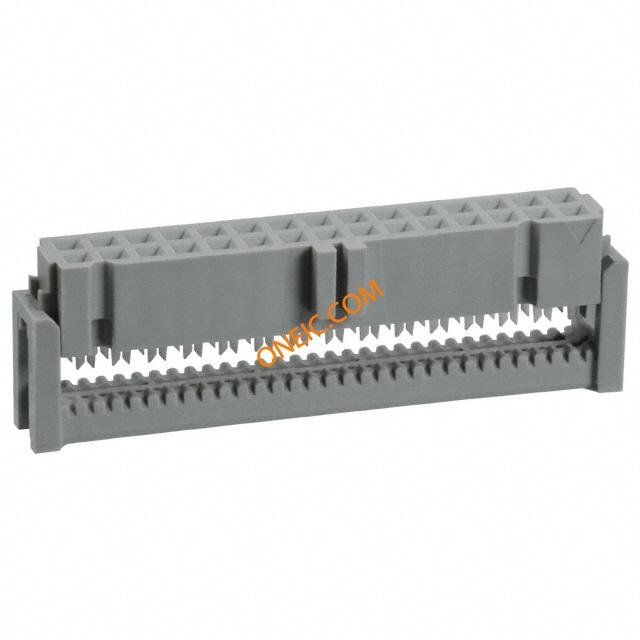

89130-0101

制造商	3M Company
描述	ヘッダ & ワイヤハウジング 30P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 30 POS IDC SOCKET GOLD POL IDC SOCKET CONNECTOR;30 CONTACTS Headers & Wire Housings 30P IDC SOCKET IDCSOCKETCONNECTOR;30CONTACTS 3M 891 系列 2行 30路 2.54mm节距母 IDC 连接器 , 电缆安装
分类	硬件与散热解决方案机架配件机架配件

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400754479 80610706642	产品类别	Headers & Wire Housings
标准包装数量	500	工厂包装数量	500

合规参数

RoHS	Lead free / RoHS Compliant	RoHS合规（认证）	Yes
材料阻燃等级	UL94V-0

电气参数

最大额定电流

1 A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	5 lbs	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
方向	直	排间距	0.100" (2.54mm)
端接方式	IDC	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	行程角度	Straight
连接器类型	Receptacle	接触镀层	Gold
安装样式	Cable	排数	2
触头材料	Phosphor Bronze	壳体材料	玻璃纤维填充 PET
主要材料	Wiremount	端接排数	IDC
电缆端接方式	IDC	插针孔直径	0.1"
端接样式	IDC	第一触头极性	Socket (Female)
触点数	30	介电材料	PBT
位数	30	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	系列	891
产品特性	Feed Through, Polarizing Key	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

-55to+105°C

文档与媒体

在线文档

891xx-0y01

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UC5COrrrrQ-

相关型号

N3440-6203RB

3M Electronic Solutions Division

Headers & Wire Housings 30P STRT SOLDER TAIL LATCH/EJECTOR .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30POS STR S-LATCH

¥17.3880

详情

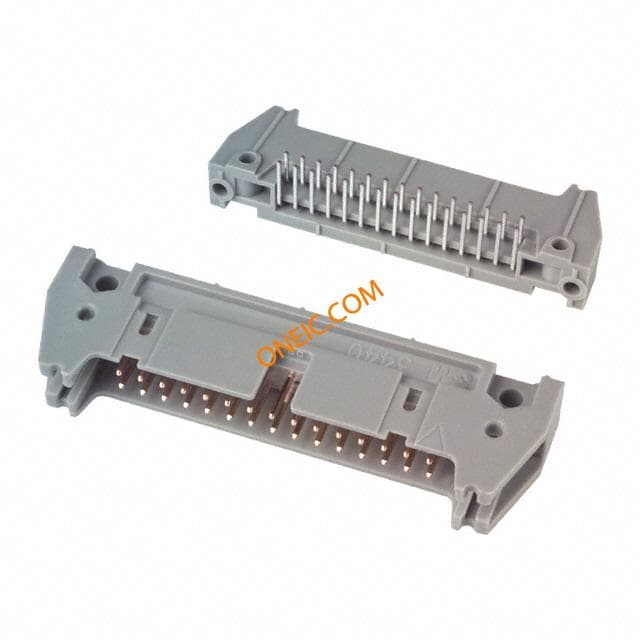

3440-5002

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER RT/ANG 30 CONTACT WIRE-BOARD CONN, HEADER, 30POS, 2.54MM

¥18.1200

详情

暂无图片

3440-6502

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30PS STR SHORT LATCH Headers & Wire Housings 30 PIN .112 30AVG 60:40 SNAP-IN

¥17.0000

详情

暂无图片

3440-6602UG

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole *NCNR CONN HEADER 30POS STR LONG LATCH

详情

D2530-5002-AR

3m interconnect solutions

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole CONN HEADER 30POS R/A 10GOLD Headers & Wire Housings 30P 4-WALL HEADER RIGHT ANGLE 10U AU

¥6.3920

详情

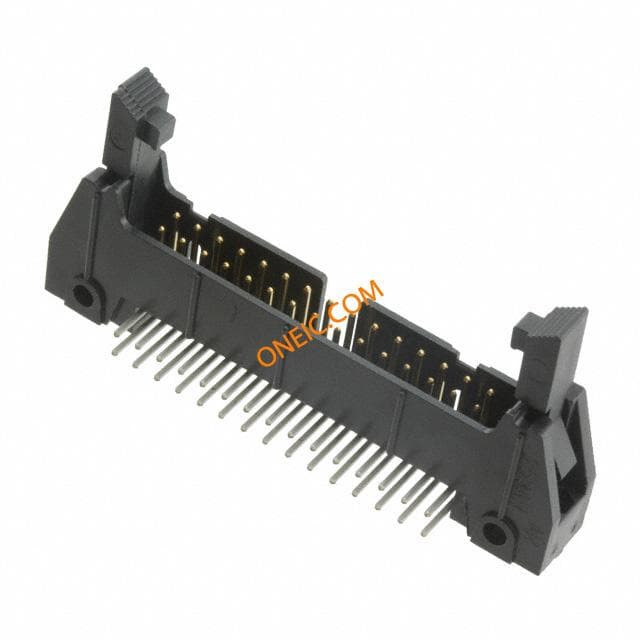

D3440-5302-AR
