点击放大查看

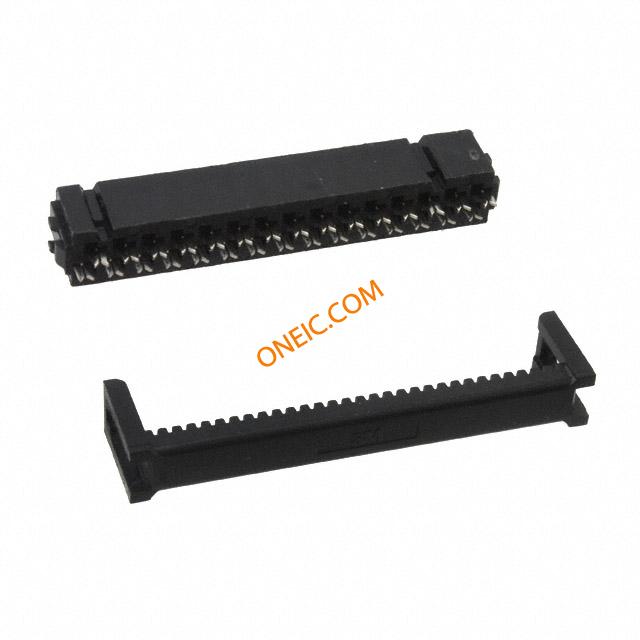

D89130-0031HK
| 制造商 | 3M Company |
| 描述 | Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount Bulk .100" Ã .100" for .050" Pitch Cable CONN 30POS IDC SOCKET 10GOLD Headers & Wire Housings 30P SKT W/O STRN REL W/O CNTR BUMP 10U AU WIRE-BOARD CONN, SOCKET, 30POS, 2.54MM |
| 分类 |
商业参数
| 零件号别名 | 05111990694 80001204215 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :3M - D89 Series | 额定电压 | 1 kV |
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 30 | 接触件端接 | :IDC / IDT |
| 位数 | 30 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | D89 | 产品特性 | Feed Through |
| 产品子类型 | Receptacles / Sockets - Housings | ||
