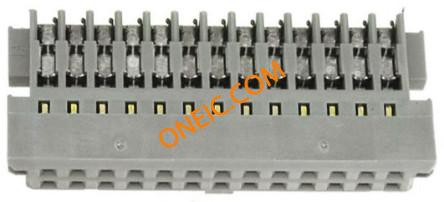

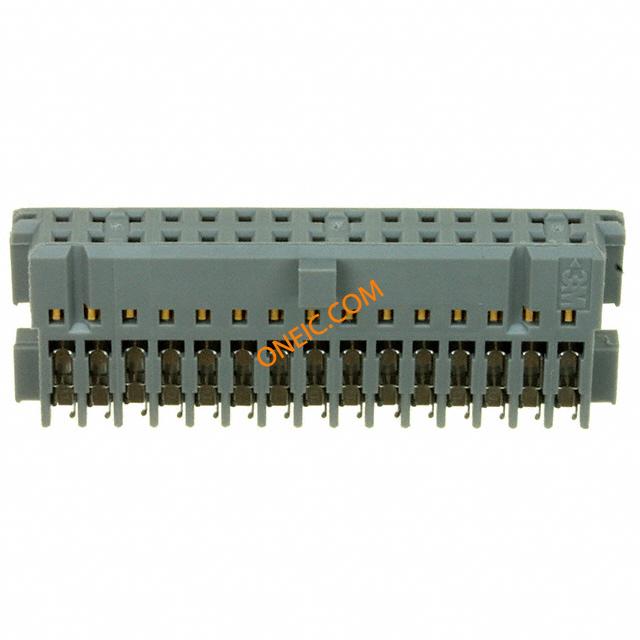

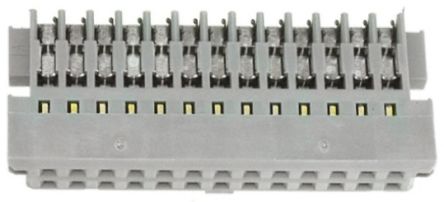

CHG-2030-J01010-KCP

制造商	3M Company
描述	Conn IDC Connector SKT 30 POS 2.54mm Crimp ST Cable Mount .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 30POS 28-26 AWG 3M CHG Series 2.54mm 30 Way 2 Row Right Angle PCB Socket Cable Mount SOCKET, IDC, 2.54MM, 30WAY Conn;Rect;Socket;Wiremnt;0.1inPitch;30Pos;2Row;28-26AWG;IDC;CHGSer;Polar 3M CHG 系列 2行 30路直角 2.54mm节距电缆安装印刷电路板插座
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	标准	DIN41612
海关税号	85366990	认证机构	cUL,UL
RoHS合规（认证）	Yes	材料阻燃等级	UL94V-0

电气参数

量程（°/s）

:3M - CHG Series

最大额定电流

3.5A

机械参数

颜色	Gray	间距	2.54 mm
重量	0.4535	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	Crimp
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
行程角度	Straight	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	2
触头材料	Copper Alloy	总长度	1.68"
主要材料	Rectangular	电缆端接方式	IDC
插针孔直径	0.1"	触点数	30
接触件端接	:IDC / IDT	介电材料	PBT
绝缘直径	0.054"	位数	30
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	CHG	产品特性	Closed End, Polarizing Key
制造商全称	CHGSeries

环境参数

工作温度

-55to+105°C

文档与媒体

在线文档

CHG-20 Series

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UB9COrrrrQ-

相关型号

暂无图片

3440-5602

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30POS R/A LONG LATCH Headers & Wire Housings 30 PIN .112 30AVG 60:40 SNAP-IN

¥17.3400

详情

暂无图片

3440-6602UG

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole *NCNR CONN HEADER 30POS STR LONG LATCH

详情

4630-6000

3m interconnect solutions

Conn Ejector Header PL 30 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 30 POS W/FLANGE HEADER, IDC, LUGGED, 30WAY

¥33.5240

详情

暂无图片

3440-5503

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30PS R/A SHORT LATCH Headers & Wire Housings 30 PIN .155 30AVG 60:40 SNAP-IN

¥18.0880

详情

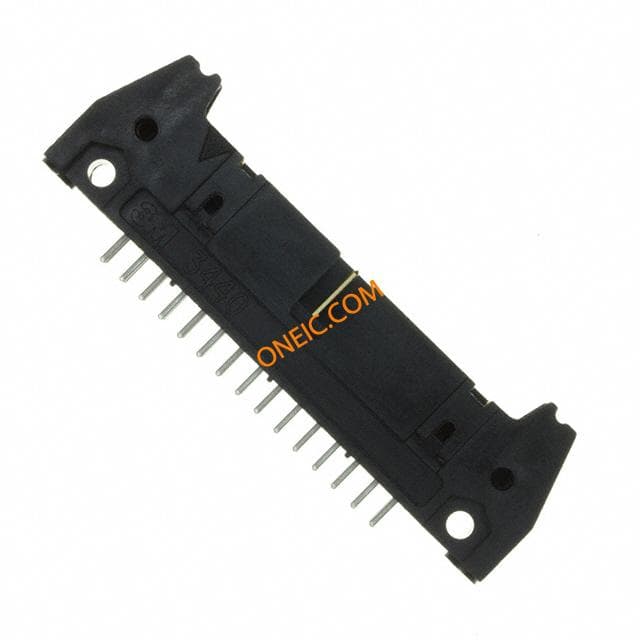

D3440-6002-AR

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole CONN HDR 30POS STR NO LATCH 10AU

¥9.4554

详情

N3440-620T02RB

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 30PS STR SHORT LATCH Headers & Wire Housings 30PS STR SHORT LATCH HEADER

¥42.8400

详情

D2530-6002-AR

3m interconnect solutions

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole CONN HEADER 30POS VERT 10GOLD Headers & Wire Housings 30P 4-WALL HEADER STRAIGHT 10U AU

¥9.9280

详情

暂无图片

4630-7305

3M Electronic Solutions Division

ヘッダ & ワイヤハウジング 30 CON CLSD END MNT FLNG W/THRD INS .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 30POS W/FLANGE&INSE Headers & Wire Housings 30 CON CLSD END MNT FLNG W/THRD INS

¥28.9000

详情

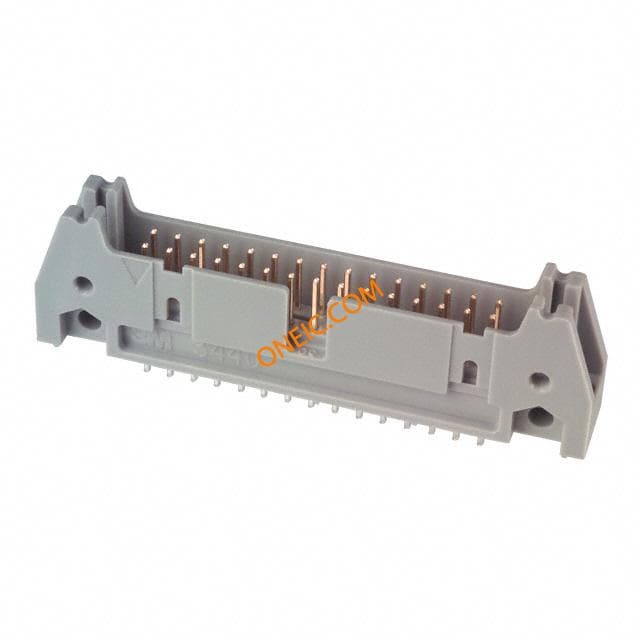

3440-6002
