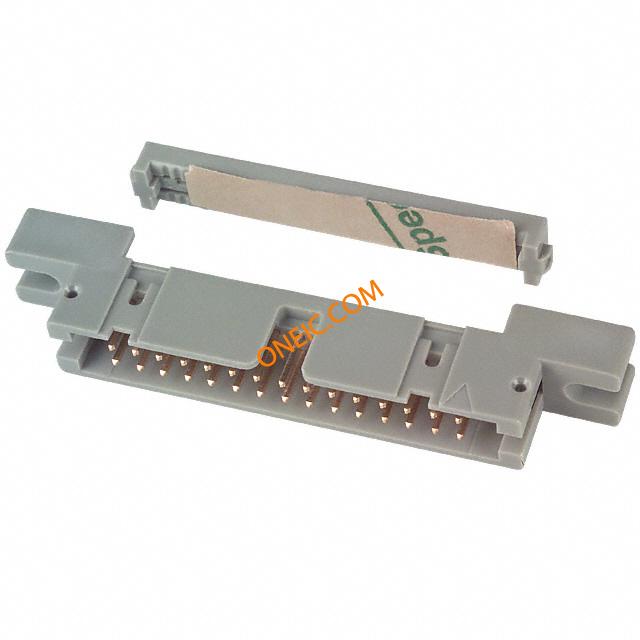

4630-6000
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header PL 30 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 30 POS W/FLANGE HEADER, IDC, LUGGED, 30WAY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| RoHS合规（认证） | Yes | 材料阻燃等级 | :UL94V-0 |
电气参数
| 工作电压 | :350V | 接触电阻 | :20mohm |
| 最大额定电流 | :1A | 绝缘电阻 | :1000Mohm |
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 重量 | 0.0574 | 材料（通用） | :Glass Filled Polyester (PBT) |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 26-28 AWG, Stranded or Solid | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | :Copper |
| 电缆端接方式 | IDC | 连接器颜色 | :Grey |
| 触点数 | 30 | 接触件端接 | :IDC / IDT |
| 位数 | 30 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Flange | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | PL |
| 产品特性 | Feed Through | ||
环境参数
| 插拔次数 | :200 | 测试温度 | :70°C |
| 工作温度 | :105°C | ||
