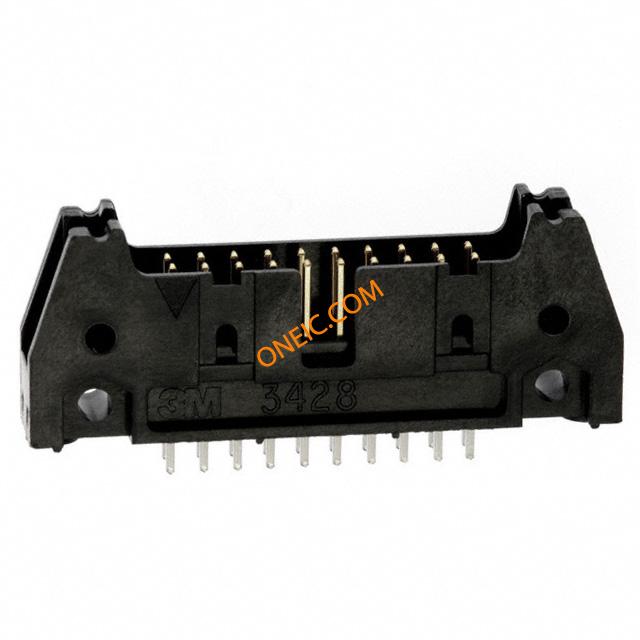

N3428-6002RB

点击放大查看

N3428-6002RB

制造商
3M Company
描述Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 20 CONTACT 3M 3000 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings BOARDMT HDR 20P NO LATCH/EJECTOR ConnEjectorHeaderHDR20POS2.54mmSolderSTThru-Hole Pin header DIN 41651 20P, N3428-6002RB, 3M 3M 3000 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05111165067 80400027787产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantRoHS合规（认证）Yes
材料阻燃等级UL 94 V-0

电气参数

电容22.86测试电压0.5
额定电压1 kV极数20
最大额定电流2A

机械参数

颜色Black间距2.54 mm
包装方式Bulk壳体颜色40.8
方向直排间距0.100" (2.54mm)
端接方式Solder触点形式Male Pin
触头类型Male Pin引脚间距0.100" (2.54mm)
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Gold Over Nickel排数2
触头材料Copper Alloy壳体材料Polyester
端接排数焊接端接样式Through Hole
板面高度0.240" (6.10mm)触点数20
位数20第一连接器极性Male
接触长度 - 配合0.240" (6.10mm)接触镀层厚度30µin (0.76µm)
每排/每行位置数All

产品信息

类型Ejector Header连接器性别HDR
系列3000覆盖范围覆盖
CAD图纸3D CAD Model产品子类型Headers
放大器类型44.7输出配置Through Hole
加载位置数All

环境参数

工作温度-55...+105 °C
