点击放大查看

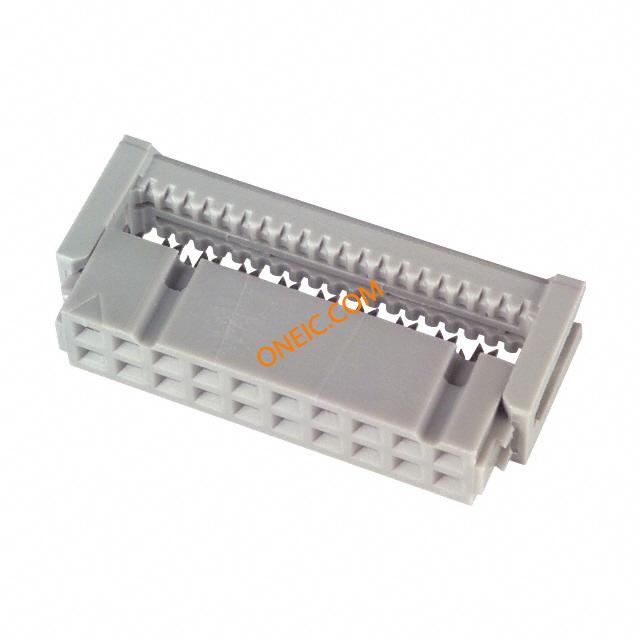

89120-0001

制造商	3M Company
描述	Headers & Wire Housings 20P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 20 POS IDC SOCKET GOLD WIRE-BOARD CONN, SOCKET, 20POS, 2.54MM StrainRelief;for20PosIDCRibbonCableSocket;0.100Inch;0.5InchPitch
分类	硬件与散热解决方案机架配件机架配件

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400751537 80610657134	产品类别	Headers & Wire Housings
标准包装数量	500	工厂包装数量	500

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366930
RoHS合规（认证）	Yes

电气参数

量程（°/s）

:3M - 891 Series

最大额定电流

1 A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	4 lbs	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold	安装样式	Cable
排数	2	触头材料	Phosphor Bronze
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	20
接触件端接	:IDC / IDT	位数	20
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	连接器性别	:Receptacle
系列	891	产品特性	Feed Through
产品子类型	Receptacles / Sockets - Housings

文档与媒体

在线文档

891xx-0y01

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UC5COrrrrQ-
