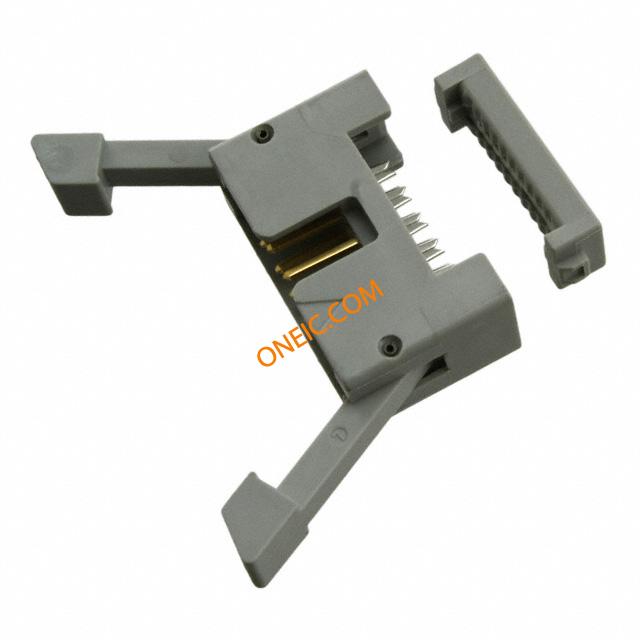

4610-6351

点击放大查看

4610-6351

制造商
3M Company
描述10/PG/OP/LL/CSL/NFLG/30AVG .100" × .100" Connector For .050" Pitch Cable CONN PLUG 10POS W/OUT FLANGE Plug; Wiremount; Glass Filled Polyester; Copper Alloy; Nickel (Underplating) Headers & Wire Housings WIREMT PLUG 10 POS Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONNECTOR PLUG, 10POS, 2.54MM Plug,Wiremount;GlassFilledPolyester;CopperAlloy;Nickel(Underplating) 3M 4600 系列 2行 10路 2.54mm节距 公 连接器 , 电缆安装
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400760987 80610200398产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant标准ULListed,RoHSComplaint
海关税号85366910RoHS合规（认证）Yes
材料阻燃等级UL94V-0

电气参数

量程（°/s）:3M - 4600 Series最大额定电流1 A

机械参数

颜色Gray深度8.4 mm
间距0.100" (2.54mm)高度27.2 mm
重量1.400 lbs包装方式Bulk
导线类型Discrete or Ribbon Cable导线线规26-28 AWG, Stranded or Solid
排间距0.100" (2.54mm)端接方式IDT
触头类型Male Pin外壳颜色Gray
安装类型Free Hanging (In-Line)行程角度Straight
连接器类型Plug接触镀层Gold
紧固类型Latch, Long/Eject Hooks安装样式Wire
排数2触头材料Copper Alloy
壳体材料Polybutylene Terephthalate (PBT)总长度22.9 mm
主要材料Wiremount电缆端接方式IDC
插针孔直径0.1"第一触头极性Pin (Male)
触点数6接触件端接:IDC / IDT
介电材料PBT位数10
绝缘材料 - 材质GlassFilledPolyester中心触点镀层工艺Gold
接触镀层厚度30µin (0.76µm)

产品信息

类型Shrouded连接器性别PL
系列4600已删除Compliant
产品特性Feed Through制造商全称4600Series
产品子类型Headers应用细节Wire-to-Wire

环境参数

温度额定值-55to+105°C工作温度-55C to 105C
