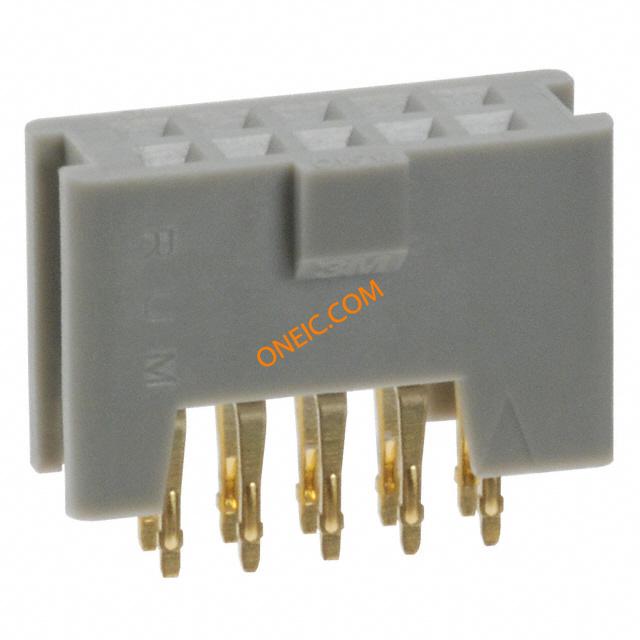

8510-4500PL

制造商	3M Company
描述	Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole STRAIGHT BM SOCKET 10P .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 10POS .1" 3M 2.54mm 10 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 10P STRT PLRZD SKT RECEPTACLE, THT, 2.54MM, 2ROW, 10WAY PolarizedBoardmountSocket(10pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:10; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 10路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

最小起订量	1	单位包装	100
零件号别名	54745226285 JE150318721	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	RoHS-conform	认证机构	UL E68080
材料阻燃等级	:UL94V-0

电气参数

额定电压	1000V	极数	:10
工作电压	:350V	最大额定电流	1A
绝缘电阻	:1000Mohm

机械参数

颜色	Gray	深度	7.1 mm
间距	2.54 mm	高度	10.8 mm
重量	0.002	材料（通用）	:Glass Filled Polyester
包装方式	Bulk	出线方向	NO
方向	STRAIGHT	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
引脚间距	:2.54mm	柱间距	2.54mm
外壳颜色	Gray	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
触头材料	Copper Alloy	壳体材料	PBT
总长度	17.3 mm	包装数量	100
连接器 - 电缆	socket	端接样式	Through Hole
第一触头极性	Socket (Female)	连接器颜色	:Grey
触点数	10	接触件端接	:Through Hole Vertical
位数	10	接触镀层厚度	12µin (0.30µm)
触点材料 - 镀层	FLASHGOLD	第一连接器安装特征	2x5

产品信息

SPG	100	类型	Socket Strip
连接器性别	SKT	系列	8500
已删除	Compliant	产品特性	Polarizing Key
极性	:Bump	匹配码	85104500PL
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - PCB
单元数量	1	标准交期	7 weeks
其他规格	NO	加载位置数	All

环境参数

插拔次数

工作温度

-55 TO 105°C

文档与媒体

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UCJCOrrrrQ-

PDF 文档

74893.pdf

相关型号

N3793-6302RB

3m interconnect solutions
