首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）3473-7010

点击放大查看

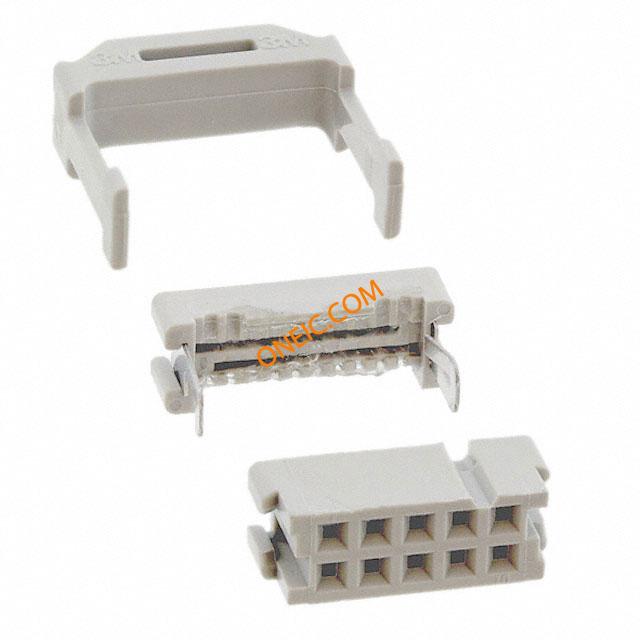

3473-7010

制造商	3M Company
描述	Headers & Wire Housings 10P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 10POS CLOSE END SRC Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONN, SOCKET, 10POS, 2.54MM
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400731560 80610078943	产品类别	Headers & Wire Housings
标准包装数量	300	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
RoHS合规（认证）	Yes

电气参数

量程（°/s）

:3M - 3000 Series

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	1 lb	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold	安装样式	Cable
排数	2	触头材料	:Copper Alloy
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	10
接触件端接	:IDC / IDT	位数	10
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	连接器性别	:Receptacle
系列	3000	产品特性	Closed End, Strain Relief
产品子类型	Receptacles / Sockets - Housings

文档与媒体

在线文档

3000 Series Wiremount Socket

相关型号

N3793-D202RB

3m interconnect solutions

Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Three-Wall Condo Header, Right Angle CONN HEADER STKD 10POS R/A SH

¥45.9680

详情

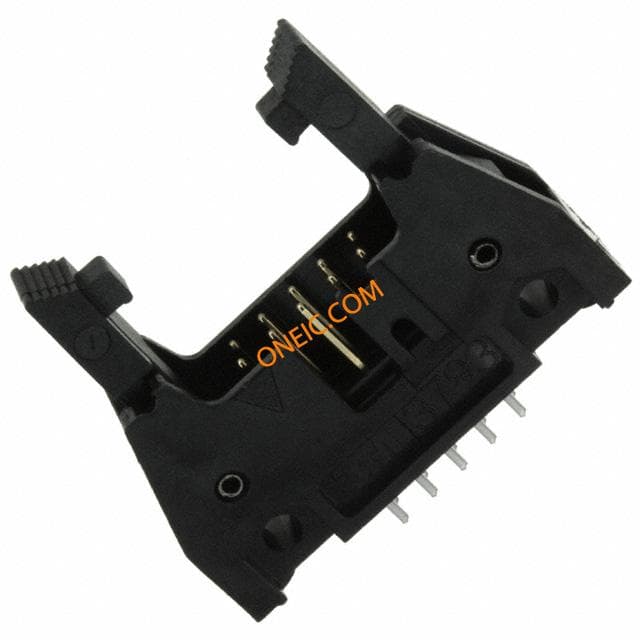

N3793-6302RB

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS STR LONG LATCH 3M 3000 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 10P STRT LONG PIN SOLDER TAIL 30u GOLD HEADER, STRAIGHT, L/LATCH, 10WAY Header;Latch-Ejector,4-Wall;0.1In;CopperAlloy;1.75A;HighTempPlastic;Str;10Cnts Socket; IDC; male; PIN:10; straight; with ejector; THT; gold plated 3M 3000 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔

¥6.0996

详情

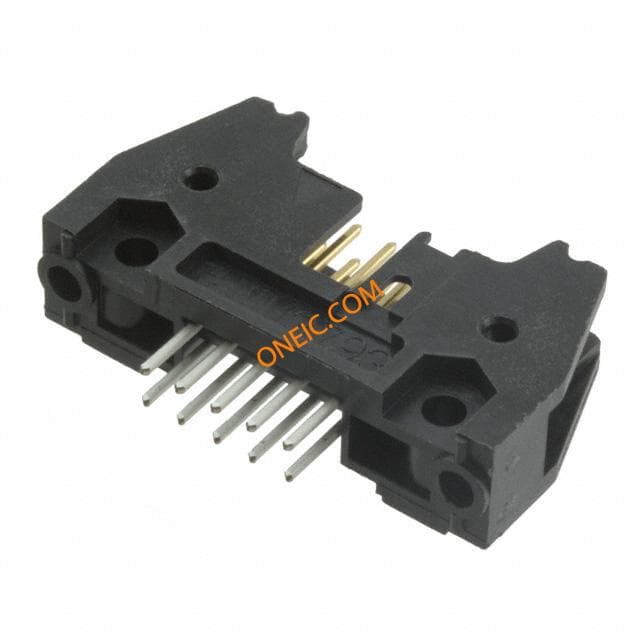

N3793-6003RB

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS STR NO LATCH Headers & Wire Housings BOARDMT HDR 10 POS NO LATCH/EJECTOR

¥5.1680

详情

暂无图片

3793-D303

3m interconnect solutions

Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 10POS R/A LO

详情

暂无图片

3793-1502UG

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER 10PS R/A SHORT LATCH

详情

暂无图片

N3793-5003RB

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS R/A NO LATCH

¥6.3988

详情

暂无图片

N3793-5502

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER 10PS R/A SHORT LATCH

详情

N3793-6502RB

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 10POS STR GOLD T/H Headers & Wire Housings 10P STRT SOLDER TAIL LATCH/EJECTOR

¥7.9350

详情

N3793-620T02RB

3m interconnect solutions

Conn Ejector Header HDR 10 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 10PS STR SHORT LATCH Headers & Wire Housings HEADER 10PS STR SHORT LATCH

¥19.6520

详情

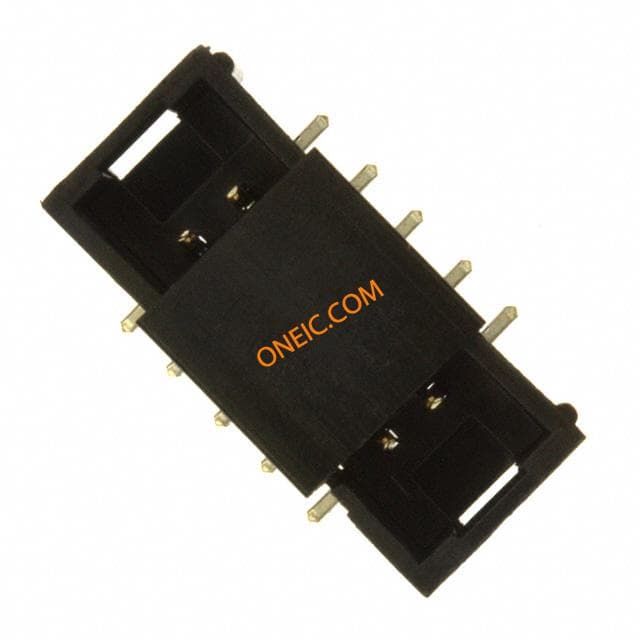

D2510-6V0C-AR-WD

3m interconnect solutions

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD T/R CONN HEADER 10POS SMD VERT 10AU Headers & Wire Housings 10P 4WALL HEADER STRT SMT LO-PRO Header;LowProfile,4-Wall;0.1Inch;HighTemp;Straight;SMT;10Cnts;Polarized

¥9.0600

详情

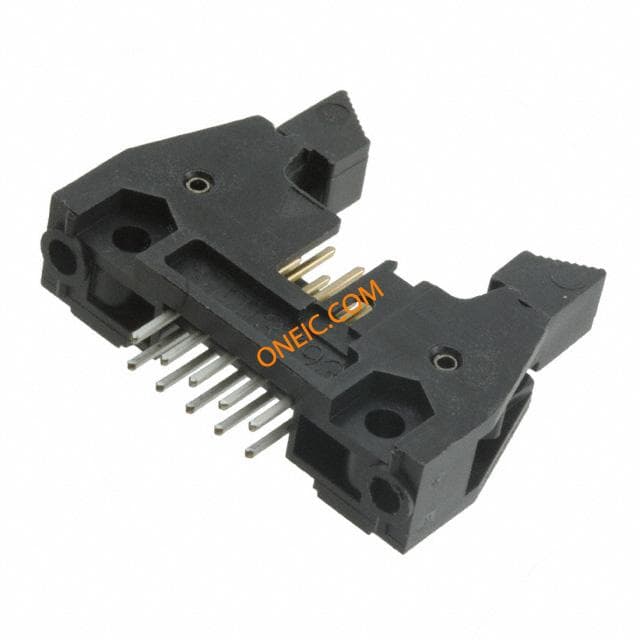

D3793-6202-AR
