点击放大查看

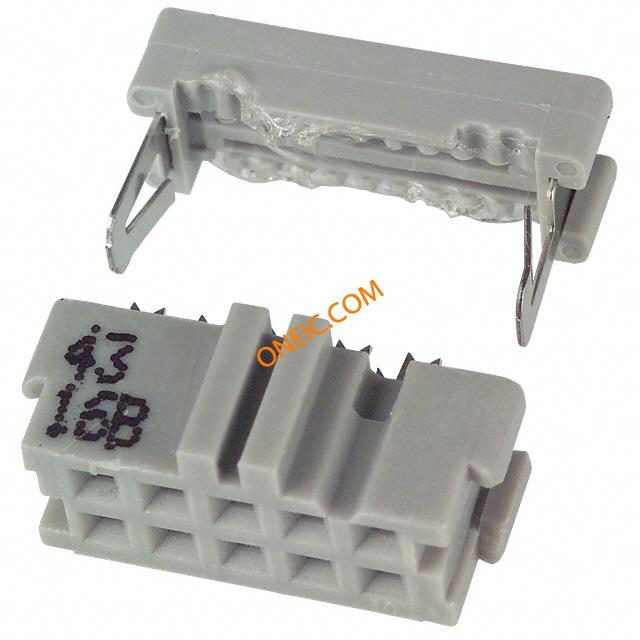

3473-7600

制造商	3M Company
描述	Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Wiremount for .050" Pitch Cable SOCKET CONN 10 CONT CLOSED W/POL 3M 3000 Series 2.54mm 10 Way 2 Row Right Angle PCB Socket Cable Mount Socket; Glass Filled Polyester; Copper Alloy; Nickel (Underplating; U Slot) Headers & Wire Housings 10P IDC SOCKET WIRE-BOARD CONN, SOCKET, 10POS, 2.54MM SOCKET, IDC, 2.54MM, 10WAY WiremountSocket,.1"x.1",.05"Pitch,10Contact,Clsdend,CenterbumpandMilitary 3M 3000 系列 2行 10路 2.54mm节距直角连接器 , 电缆安装
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400707483 80610153050	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

量程（°/s）

:3M - 3000 Series

最大额定电流

机械参数

颜色	Gray	间距	2.54 mm
重量	12.800001 oz	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Cable	排数	2
触头材料	Copper Alloy	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	10	接触件端接	:IDC / IDT
位数	10	接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	3000	产品特性	Closed End, Polarizing Key
产品子类型	Receptacles / Sockets - Housings

文档与媒体

在线文档

mediawebserver?6666660Zjcf6lVs6EVs6661ojCOrrrrQ-

在线文档

3000 Series Wiremount Socket

在线文档

mediawebserver?66666UuZjcFSLXTtlXfVmX&XEVuQEcuZgVs6EVs6E666666--
