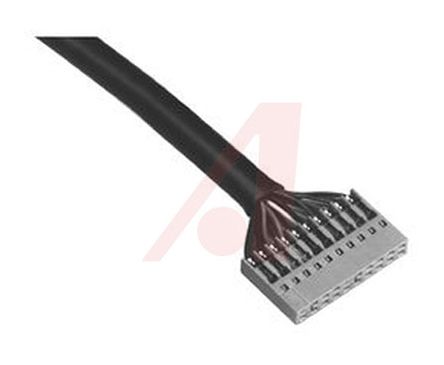

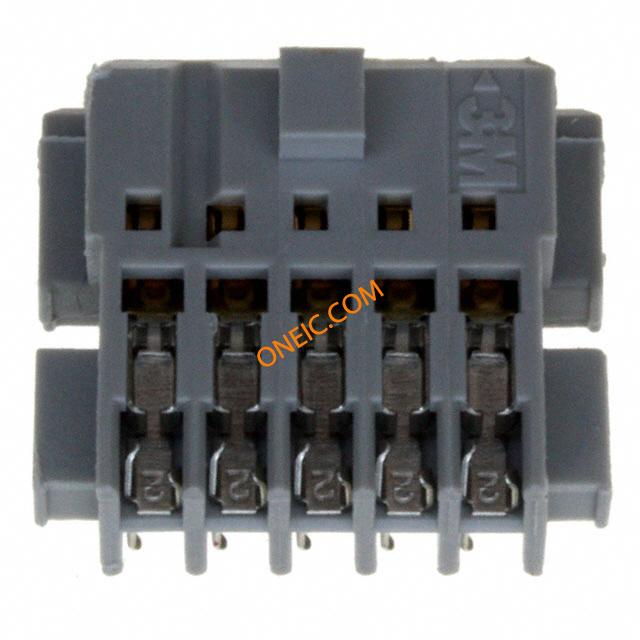

CHG-2010-J01010-KEP

制造商	3M Company
描述	Headers & Wire Housings 10P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 10POS 24-22 AWG Socket;Wiremount;0.1Inch;for0.1InchPitchCable;10Cnts;Centerbump 3M CHG 系列 2行 10路 2.54mm节距电缆安装母 IDC 连接器
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400761986 80610210256	产品类别	Headers & Wire Housings
标准包装数量	100	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

RoHS合规（认证）

Yes

电气参数

最大额定电流

1.25 A, 1.5 A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	1 lb	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	22-24 AWG
方向	直	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold
安装样式	Cable	排数	2
触头材料	铜合金	壳体材料	玻璃纤维填充 PET
端接排数	IDC	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	10	位数	10
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	系列	CHG
产品特性	Closed End, Polarizing Key	产品子类型	Receptacles / Sockets - Housings
基础产品编号	CHG-2010

环境参数

工作温度

+105°C

文档与媒体

在线文档

CHG-20 Series
