点击放大查看

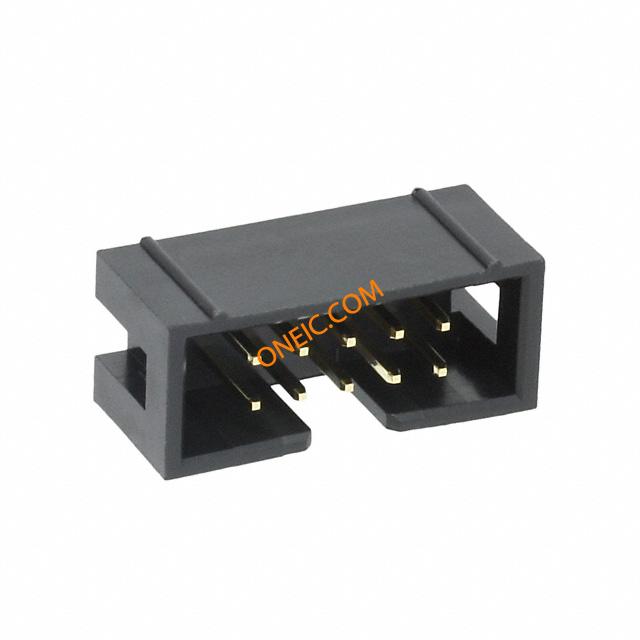

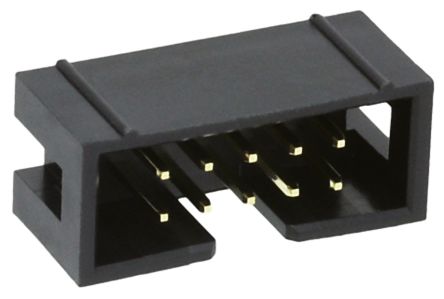

30310-6002HB
| 制造商 | 3M Company |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Low Profile Four-Wall, Straight and Right Angle CONN HEADER 10POS DL STR GOLD Header; Glass Filled Polyester; Brass; Nickel (Underplating); 1 A A; Black Headers & Wire Housings 10P STRT 4WALL GLDFL CONNECTOR, HEADER, 10WAY Header;GlassFilledPolyester;Brass;Nickel(Underplating);1AA;Black 3M 303 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 |
| 分类 |
商业参数
| 零件号别名 | 05113844624 SE008001767 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 认证机构 | UL | 材料阻燃等级 | UL94V-0 |
电气参数
| 量程（°/s） | :3M - 303 Series | 最大额定电流 | 1 A |
| 绝缘电阻 | >1x10^9Ohms@500VDC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 出线方向 | LowProfile | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.11" | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 0.8" | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 绝缘材料 - 材质 | GlassFilledPolyester | 接触长度 - 配合 | 0.236" (6.00mm) |
| 接触镀层厚度 | Flash | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 303 | 产品特性 | Four-Wall |
| 制造商全称 | 303Series | 产品子类型 | Headers |
| 卡标准 | UL94V-0 | 加载位置数 | All |
环境参数
| 温度额定值 | -55to+105°C | 工作温度 | -55to+105°C |
