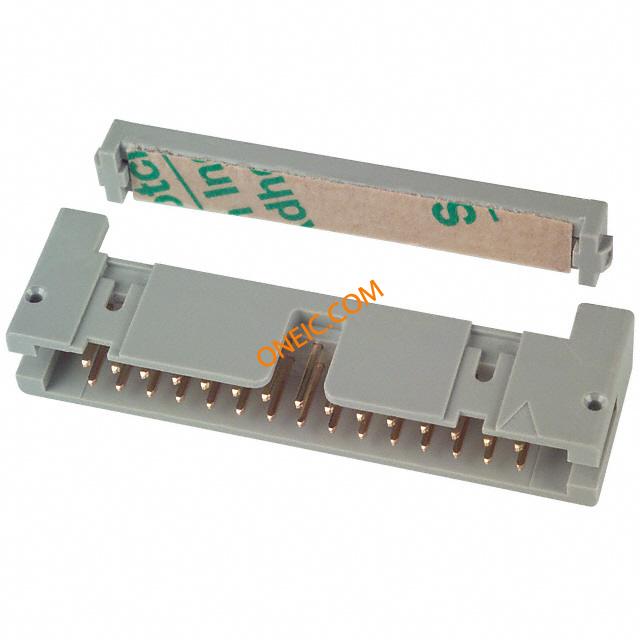

4630-6001

点击放大查看

4630-6001

制造商
3M Company
描述ヘッダ & ワイヤハウジング 30P MOUNTING FLANGE .100" × .100" Connector For .050" Pitch Cable PLUG CONNECTOR 30 POS W/O FLANGE Headers & Wire Housings 30P MOUNTING FLANGE Conn Ejector Header PL 30 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONNECTOR PLUG, 30POS, 2.54MM
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400735703 80610170864产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
RoHS合规（认证）Yes

电气参数

量程（°/s）:3M - 4600 Series额定电压1 kV
开关功能Unlatched最大额定电流1 A

机械参数

颜色Gray间距0.100" (2.54mm)
重量2.100 lbs包装方式Bulk
导线类型Discrete or Ribbon Cable导线线规26-28 AWG, Stranded or Solid
排间距0.100" (2.54mm)触头类型Male Pin
安装类型Free Hanging (In-Line)连接器类型Plug
接触镀层Gold安装样式Wire
排数2触头材料Copper Alloy
壳体材料Polybutylene Terephthalate (PBT)电缆端接方式IDC
第一触头极性Pin (Male)触点数30
接触件端接:IDC / IDT位数30
接触镀层厚度30µin (0.76µm)

产品信息

类型Shrouded连接器性别:Plug
系列4600产品特性Feed Through
产品子类型Headers应用细节Wire-to-Wire

文档与媒体

在线文档
mediawebserver.dyn?6666660Zjcf6lVs6EVs666UafCOrrrrQ-
PDF 文档
685282.pdf
在线文档
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf6NXz6EVuQEcuZgVs6EVs6E666666--
